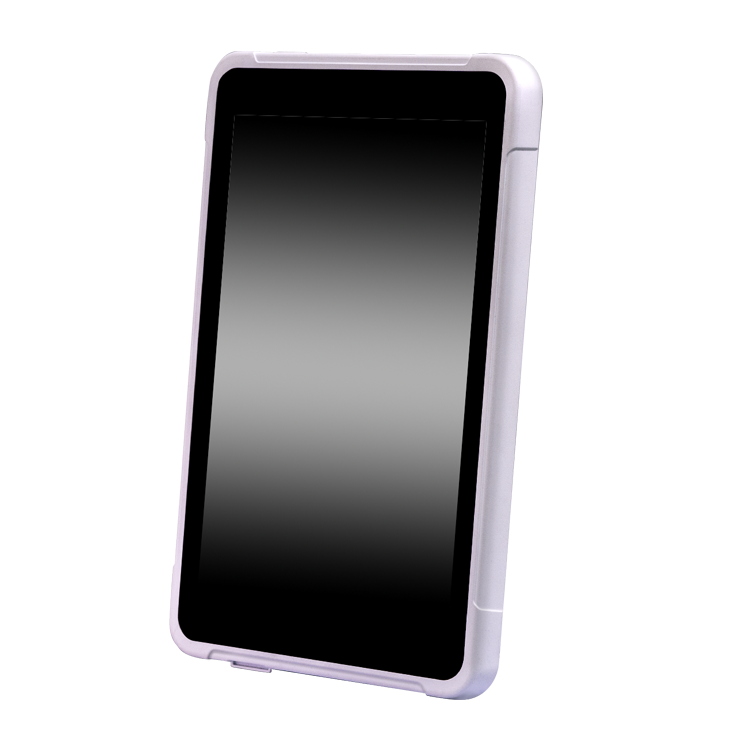

8" Medical tablet

  • ARM-core processor
  • Android OS
  • HD touch screen display
  • Wireless connection (Bluetooth and WiFi)
  • Cellular communication (LTE)
  • Rugged enclosure (drop-proof)
  • Waterproof (IP54) and bleach-tolerable
  • EMI/EMC certified
  • CE/FCC
FacebookTwitterGoogle PlusPinterest

Specification

Processor

ARM® Cortex® Quad-Core up to 1.6 GHz

System Memory

2 GB SDRAM

OS Support

Android 6.0.1

LCD Display

8” (1280 x 800) TFT LCD with 2-point P-cap

Communication

Bluetooth 4.0 (EDR) with integrated class 1 PA and BLE Support, WiFi b/g/n

I/O Port

3.5 mm Stereo Headphone Jack x 1, Built-In Speaker & Microphone, DC-In Jack x 1, Micro SD card slot, nanoSIM Card Slot, USB Type A x 1, USB Type C x 1, Volume Up/Down

Storage

16 GB eMMC Flash

Camera

Front 2MP, Rear 8MP with Flash LED

Sensor

Built-in G-Sensor, Built-in Light Sensor, Built-in Vibration Motor

Color

White

Dimensions

136.6 x 219 x 21 mm (5.38 x 8.58 x 0.83”)

Gross Weight

0.67 Kg (1.48 lb)

Operating Temperature

0°C ~ 40°C

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Humidity

10 ~ 75%

Water/ Dust Protection Rating

IP54

AC/DC Adapter

AC Power Input: 100 ~ 240 V, 50 ~ 60 Hz, 36 W, Output: 12 V, 3 A

Battery

Lithium-Polymer High Capacity Battery

Download Resource

MPAD-800
User Manual Driver Bios Certification

Product Video

Addtional Information

Application

  • Telehealth & Home Health
  • Clinical Workow & Patient Admission
  • Medical Device Remote Control

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
