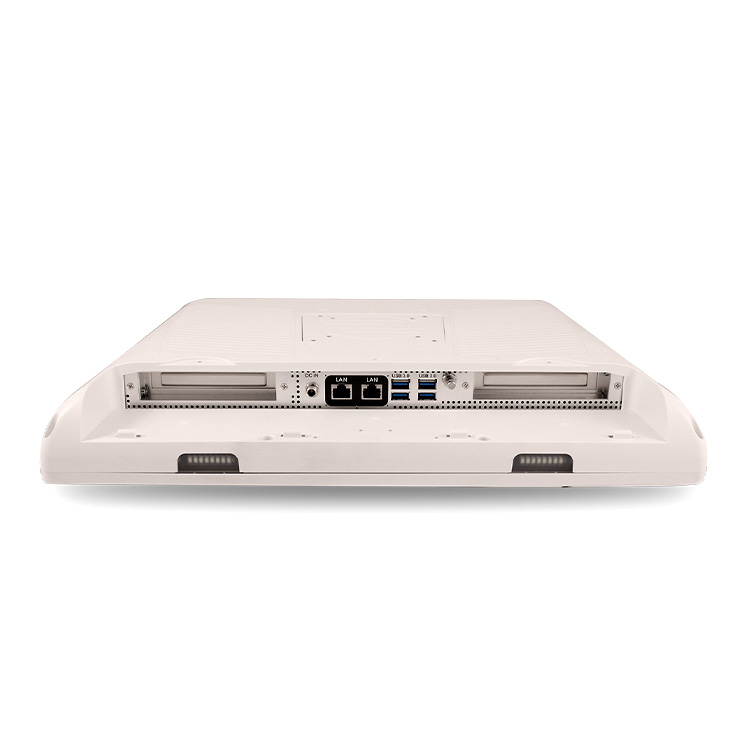

19” Fanless Medical AIO

  • 6th Generation Intel® CoreTM i7/i5/i3 Processor
  • Intel® H110 chipset
  • 19″ SXGA LCD multi-touchscreen (resistive/capacitive)
  • High contrast (1000:1)
  • Support 4K UHD HDMI video out
  • Medical grade certified (safety and EMC/EMI)
FacebookTwitterGoogle PlusPinterest

Specification

Processor

Intel® 6th Generation Core i7 / i5 / i3 Processor

System Memory

Supports Dual Channel DDR4 2133 SODIMM up to 32GB

Chipset

Intel® H110

OS Support

Windows® 7, Window® 8.1, Window® 10, Linux®

Storage Disk Drive

2.5" SATA Hard Disk Drive/SSD x 1, Slim DVD-RW Drive x 1 (optional)

Security

Trusted Platform Module, RFID Reader (optional), Smart Card Reader x 1 (optional)

Wireless Communication

802.11ac/a/b/g/n(optional), Bluetooth 3.0HS & 4.0 (optional)

Speaker

5Wx2

Function Keys

Speaker Volume Up/Down, LCD Brightness Up/Down LCD On/Off, Touch Screen On/Off, Reading Light On/Off

Power Requirement

DC 12V

Size

19" TN LCD

Resolution

1280 x 1024

Luminance

250 nits

View Angle

170˚(H)/160˚(V)

Contrast Ratio

1000:1

Back Light Life Time

30,000 Hours

Touchscreen

5-Wire Resistive / Capacitive Multi-Touch

USB

USB 3.0 x 4, USB 2.0 x 2

Serial Port

RS-232 x 2

Ethernet

1.5KV Isolated Gigabit LAN x 2

Video Out

Display Port x1, HDMI x 1 (Supports resolution up to 3840 x 2160)

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Audio

Mic-in, Line-out

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Mounting

VESA 75/100 mm

Degree of protection

IP65 in the front ; IP54 in the back

Net Weight

7.5kg (16.5lb)

Package Dimension (W x D x H)

640 x 220 x 520mm

Certifications

CE: EN 60601-1-2:2015(V4.0), cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1), EN 60601-1:2006/A1:2013(V3.1), FCC: Part 18 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1)

Download Resource

MATE-1903
User Manual Driver Bios Certification
Download Download Download Download

Product Video

Coming soon…

Addtional Information

Application

  • Telemedicine
  • EHR/EMR
  • Nursing Station
  • Patient Ward
  • Long Term Care Facility

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.
