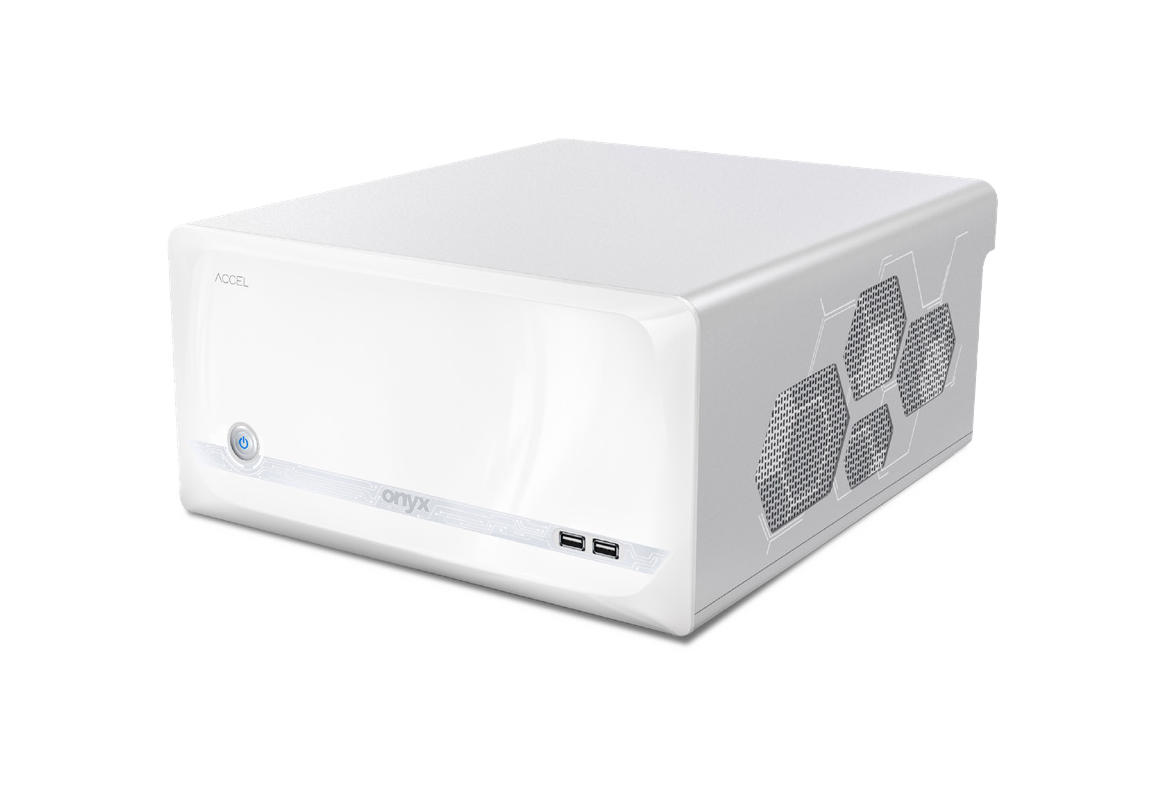

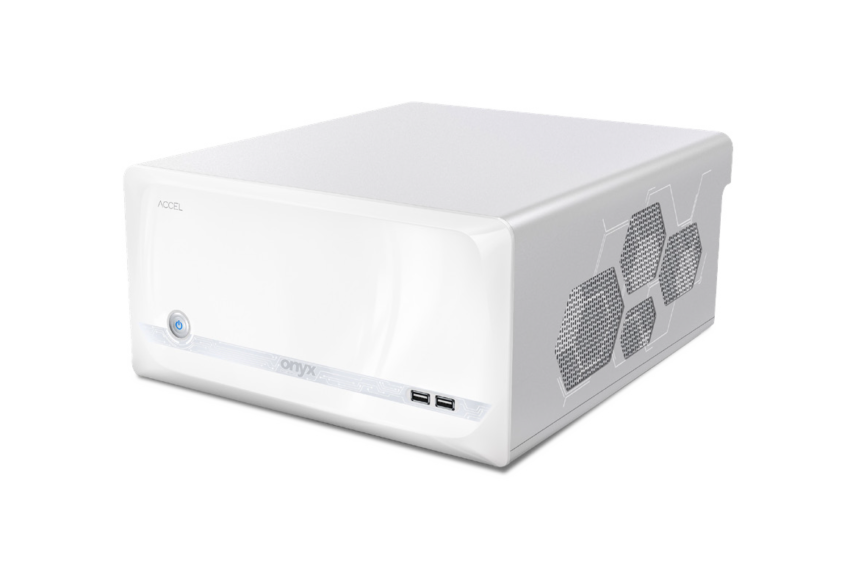

• Medical Video Management System with 9th Generation Intel Xeon / Core i7 CPU
  • Intel® 9th generation Core I/Xeon Processor with C246A chipset
  • Supports ECC DDR4 DIMM up to 64GB memory
  • Excellent Thermal design with low fan noise OR room environment
  • Support TPM 2.0 for security management
  • Support Three 4K Displays: HDMI x 2, DP x 1
  • System is medical Certified with graphic card and capture card
  • Supprt the integration of Nvidia RTX A4000, A5000 and A6000 GPU Card
  • Support CD DVD(optional)
  • Support Built in speaker (optional)





Intel® 9th generation Core I/Xeon Processor


Intel® C246A

System Memory

Supports ECC DDR4 2133 DIMM x 4 up to 64GB

OS Support

Windows® 10, Linux® (Optional)

Storage Disk Drive

2.5" SATA SSD x 2, M.2 2280 M Key SSD x 1 (NVMe or SATA SSD)



CD/DVD (Optional)

SATA DVD+/-RW White Color

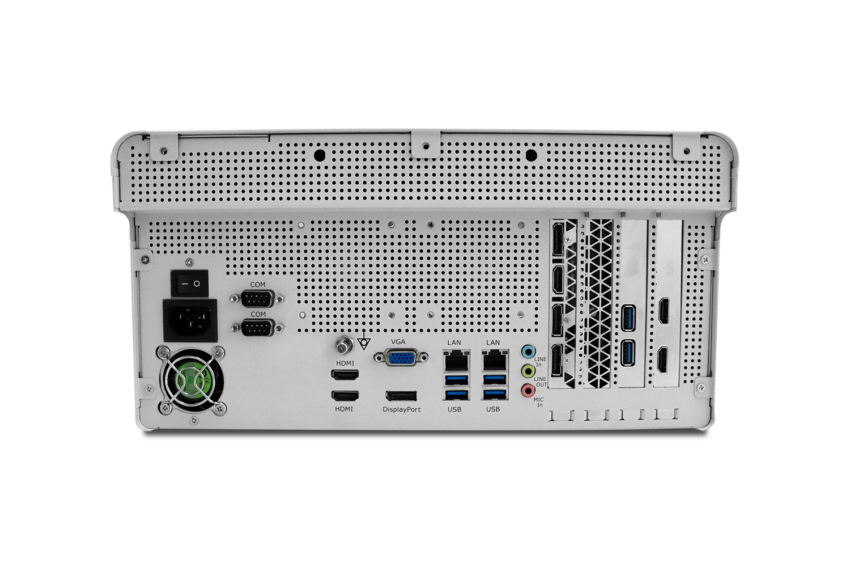

USB 3.1 Gen2 x 6 & USB 3.1 Gen1 x 4


Gigabit LAN x 2


Line-in x 1, Mic-in x 1 and Line-out x 1

Serial Port

RS-232 x 2

Extension Area

M.2 E Key 2230 x 1 for Wireless module
PCIe 3.0[x16] x1, PCIe 3.0 [x4] x2, PCIe 3.0 [x1] x 1

Optional Capture I/O

4Kp60: HDMI 2.0 in
FHD: HDMI x1, DVI-I x 1, YPbPr x1, SDI x1, CVBS x 1, S-Video x 1

Power Consumption

100V to 240V AC Input, 500W

Operating Temperature

0°C ~ 35°C(32°F ~ 95°F)

Storage Temperature

-20°C ~ 60°C(-4°F ~ 140°F)


330 x 357.4 x 168 mm

Packaging Size

500 x 490 x 300 mm

Gross Weight

8.6 kg

Net Weight

8 kg

Download Resource

User Manual Driver Bios Certification

Product Video

Coming soon…

Addtional Information


  • Equipment Control
  • Video Recording in Operating Room
  • Organ Transplantation
  • Surgery
