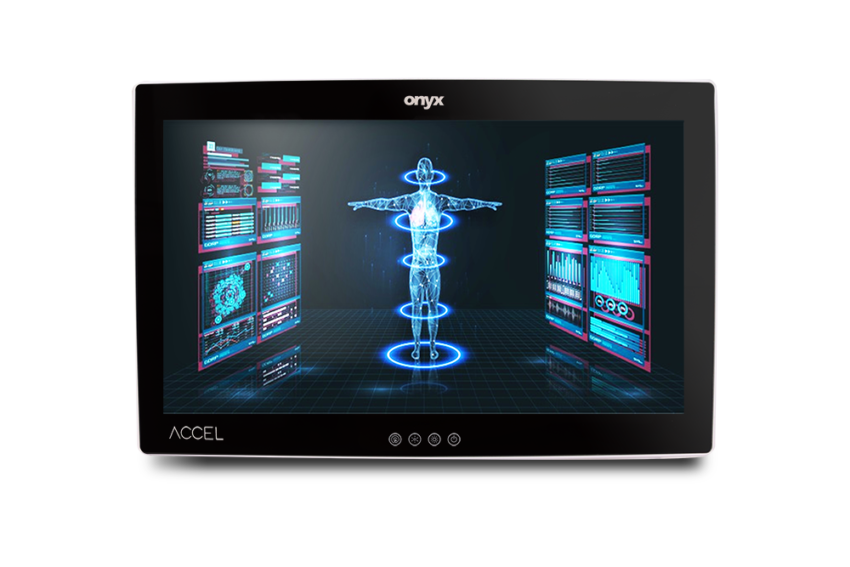

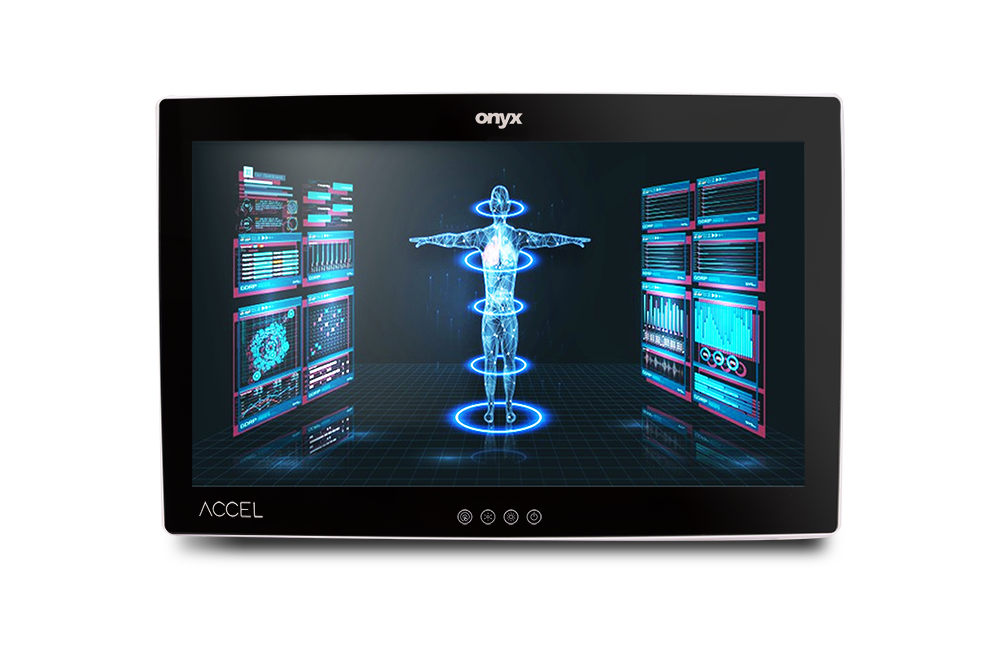

  • Intel® 9th Generation Xeon E-2276ML 2.0GHz Six Core / Core i7-9850HL 1.9GHz Six Core
  • Supports ECC / Non-ECC DDR4 SODIMM up to 64GB
  • 24” FHD 1920 x 1080 400-nit High Contrast LCD
  • Capacitive Multi-Touch Screen
  • 4 Programmable Smart Function Keys with Dual Colors LED Status Indication
  • LAN/USB (optional) / COM (optional) Medical Isolation
  • Dual Slots PCI Express [x16] x1 for High End Graphics Card / GPU Accelerator Card up to 250W
  • PCI Express [x4] x1, PCI Express [x1] x1
  • Trusted Platform Module 2.0
  • Remote Management: Intel Active Management Technology
  • 100V to 240V AC Input

Specification

Processor

Intel® 9th Generation Xeon E-2276ML 2.0GHz Six Core / Core i7-9850HL 1.9GHz Six Core

Chipset

CM246 (for Xeon) / QM370 (for Core i7)

System Memory

ECC (for Xeon) / Non-ECC (for Core i7) DDR4 SODIMM up to 64GB

Expansion Interface

PCI Express [x16] x1, PCI Express [x4] x1, PCI Express [x1] x1

Storage Disk Drive

2.5” SATA Hard Disk Drive / Solid State Disk Drive x2

Security

Trusted Platform Module 2.0

Wireless Communication

802.11ac/a/b/g/n, Bluetooth V4.1/ 5

Speaker

5W x 2

Function Key

Power On/Off, LCD, Brightness Up/Down, Touch Screen On/Off

Power Requirement

100 to 240V AC

OS Support

Windows® 10, Linux®

Size

24” LCD

Resolution

1920 x 1080

Luminance

400 nits

View Angle

178˚(H) / 178˚(V)

Contrast Ratio

1000:1

Back Light Life Time

30,000 Hours

Touch Screen

Capacitive Multi-Touch

USB

USB 3.0 x 4

Serial Port

Isolated RS-232 x2 (optional)

Ethernet

Isolated Gigabit LAN x2

Audio

Mic (optional), Line out (optional)

Video Out

Display Port 1.4 x1

Power Consumption

Full loading : 75 Watts

Operating Temperature

0°C to 35°C( 32°F to 95°F)

Storage Temperature

-20°C to 60°C(-4°F to 140°F)

Mounting

VESA 100mm

Degree of protection

IP65 in the front, IPX1 in the back

Net Weight

11 Kg (24.3 lbs)

Unit Dimensions (W x D x H)

595 x 387 x 95 mm

Package Dimensions (W x D x H)

764 x 240 x 534 mm

Certifications

CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)

Addtional Information

Application

  • EMR/EHR Solution
  • DICOM to PACS Conversion
  • Organ Transplantation
  • Surgery
