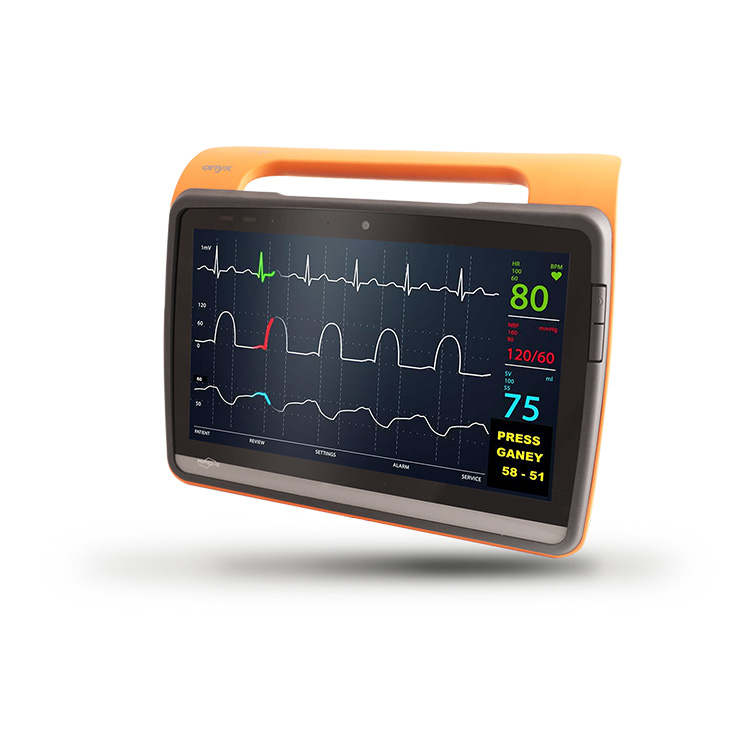

MD116 Medical Grade Tablet



  • Windows 10 IOT LTSB
  • FHD touch screen display
  • Dual hot-swappable batteries
  • Waterproof (IP54)
  • Docking system
  • Automotive Directive and EN1789 certified for both vehicle and medical use

Specification

Processor

Intel® Apollo Lake Processor

System Memory

DDR3L SO-DIMM x1, Default 4 GB (Up to 8 GB)

OS Support

Microsoft® Windows 10 IOT LTSB

Storage

M.2 Interface x1, Default 64 GB

Wireless Communication

802.11 a/b/g/n + BT4.0 (Optional)

Camera

2 MP (Front) / 5 MP (Rear)

Touchscreen

Projected Capacitive Touchscreen,w/Gorilla Glass

Digital Accelerometer

ADI ADXL345

Ambient Light Sensor

TAOS TSL2581

LTE+GPS

Telit LN930 x 2 (Optional)

Function Keys

x2

LED Indicators

x2

Speaker

3W x1

Internal Mic

x1

Power Requirement

DC 12V

Security

Smart Card Reader x2 (Optional), RFID x1 (Optional)

Display Size

11.6” 16:9 Widescreen LED Panel

Resolution

FHD 1920 x 1080

Max. Colors

16.7M

Contrast Ratio

800:1

Luminance (cd/m2)

600nits

USB

USB 3.0 (Type-A) x1, USB 2.0 (Type-A) x1

Ethernet

Gigabit LAN x1

DC-In

DC-In Jack x1

Docking

Docking Connector x1

Battery Type

Lithium-Ion

Battery Capacity

4545 mAh (32.72Wh) x2

Battery Run Time

Approx. 8 hrs

VESA

VESA 75 via docking station

Operating Temperature

0°C ~ 40°C

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Humidity

10%~95%@35°C, non-condensing

Dimensions

312 (W) x 239 (H) x 37 (D) mm

Net Weight

Approx. 1.45~1.8 kg

Certifications

CE: EN 60601-1-2:2015(V4.0), cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1), EN 300 328 (V2.1.1), EN 301 893 (V2.1.1), EN 60601-1:2006/A1:2013(V3.1), FCC: Part 18 Class B, Part 15 C/E, UL: ANSI/AAMI ES60601-1:2012 (V3.1)

Addtional Information

Application

Information and documentation assistant for EMS

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
