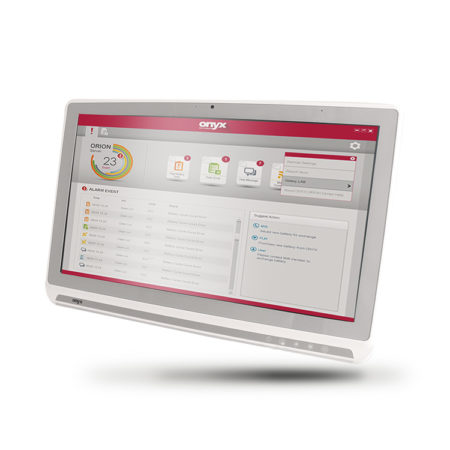

19” Fanless Mobile AIO

  • Medical grade certification (EMC 4.0/Safety 3.1)
  • Hot swappable battery power
  • Vertical alignment LCD display (contrast 1000:1)
  • Bleach tolerable (front IP65)
  • Compatible with remote installation /recovery
FacebookTwitterGoogle PlusPinterest

Additional information

Processor

Intel® Quad-Core J1900, Intel® Skylake Dual-Core i5

System Memory

DDR4 up to 32GB

OS Support

Microsoft® Windows 7 (32bit/64bit), Microsoft® Windows 8.1 (64bit), Microsoft® Windows 10 (64bit), Ubuntu 14.04 LTS IGEL (thin client solution)

Graphics

Intel® HD Graphics 520

Storage

SSD up to 512GB (optional)

Wireless Communication

802.11 ac/a/b/g/n + BT 4.0 (Optional)

Touchscreen

R-TS

Speaker

2Wx2

Security

TPM 1.2 Smart Card Reader, RFID ISO 15693/14443A (optional)

Auto Brightness

Light sensor

Display Size

19.5” VA panel

Resolution

1280 x 1080

Max. Colors

16.7M

Contrast Ratio

1000:1

Luminance (cd/m2)

250

USB

Rear I/O : USB 3.0 x2, USB 2.0 x2, Isolated USB x1, Side I/O : USB 3.0 x2

Video Out

HDMI 1.4 x1

COM

Isolated COM port x2

Audio

Combo audio port x1

Ethernet

Gigabit LAN x1

DC-In

24V DC-in x1

VESA

75/100 mm VESA mount

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Humidity

10%~95%@35°C, non-condensing

Dimensions

542(L) x 77(W) x 362(H) mm

Net Weight

7kg (15.4 lbs)

Gross Weight

10.5kg (23.15 lbs)

Package Dimension (W x D x H)

680(L) x 270(W) x 530(H) mm

Certifications

CE: EN 60601-1-2:2015(V4.0), cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1), EN 60601-1:2006/A1:2013(V3.1), FCC: Part 18 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1)

Product Video

Description

Application

  • PACS & Radiology
  • Exam Room
  • Physician Clinic
  • Telemedicine

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
