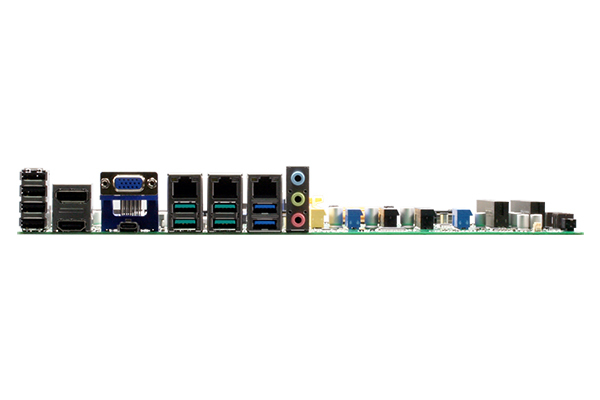

  • 8th/9th Generation Intel® Core™ LGA1151 Processor
  • USB 3.2 Gen 2 ports x 4, USB 3.2 Gen 1 ports x 2, USB 2.0 ports x 4
  • DDR4 2666/2400/2133 MHz, max. 64GB
  • Three Independent Displays: HDMI x 1, VGA x 1, DP x 1, USB Type-C x 1 (optional)
  • Dual Intel® Gigabit Ethernet, i211AT x 1 (option: i211AT x 2), i219LM x 1
  • Supports Power 95W max
  • TPM Onboard

Specification

Processor

8th/9th Generation Intel® (Coffee Lake-S) Core™ i9/ i7/ i5 /
i3, Pentium™ 14nm, Celeron™, Xeon™ E-2200/2100, LGA
1151 socket Processor, Max. 95W (E-2278GE, 8C16T)

Form Factor

ATX

System Memory

DIMM x 4, DDR4 (2666/2400/2133 MHz, max. 64GB)
ECC, un-buffered memory Dual-channel memory
architecture

Chipset

Intel® C2460 Express Chipset

H/W Status Monitoring

Temperature Monitor on CPU/Chassis, Voltage Monitor on
Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis

Expansion Slots

PCIe 3.0[x16] Slot x 1, PCIe 3.0[x4] Slot (open edge) x 2,
PCIe 3.0[x1] Slot (open
edge) x 2, PCI x 2, M.2 2230 E-key (PCIex1/USB2.0/CNVi) x
1, M.2 2280 M-key
(PCIex4/SATA3) x 1

Operating System

Windows® 10 64-bit, Linux Ubuntu 64-bit (18.04.1/
Kernal4.8.0)

BIOS

256M bit Flash ROM x 1, AMI BIOS

Wake on LAN

Yes (WOL / PXE)

Watchdog Timer

1~255 step by software program

TPM

Nuvoton NPCT750ABBYX TPM2.0 onboard (optional)

Power State

S3, S4, S5

USB

USB 2.0 headers x 1 support additional 2 USB
ports (2x5PIN, p=2.54mm)

Ethernet

Intel® PHY i219LM Giga LAN x 1 (supports Intel® AMT
12.0), Intel® i211AT Giga LAN x 1 (BOM option: i211AT x 2)
RJ45 x 2 (BOM option: RJ45 x 3)

Storage

SATA III (6.0Gb/s) ports x 4, support RAID 0/1/5/10
M.2 2280 M-key (PCIex4/SATA3) x 1

Audio

Realtek® ALC887 6-Channel High Definition Audio CODEC

Display Chipset

Intel® Graphics Media Accelerator

Multi Display

HDMI+VGA+DP (BOM option: USB 3.2 Gen 2 Gen2-10Gbps
Type-C connector (Alternate Mode: USB+DP) x 1)

VGA

Up to 1920 x 1200 @60Hz (via IT6516B)

DIO

8-bit Digital I/O interface (In/Out programmable)
x 1

Fan

CPU Fan connector(s) (4-pin) x 1, Chassis Fan
connector(s) (4-pin) x 2

Battery

Lithium battery

Power Requirement

24-pin ATX connector x 1, 8-pin (2×4) ATX 12V Power
connector x 1

Operating Humidity

0% ~ 90% RH, non-condensing

Operating Temperature

32°F ~140°F (0°C ~ 60°C)

Storage Temperature

-40 °C ~ 85 °C

Gross weight

1.76lb (0.8 kg)

MTBF (Hours)

281,410
