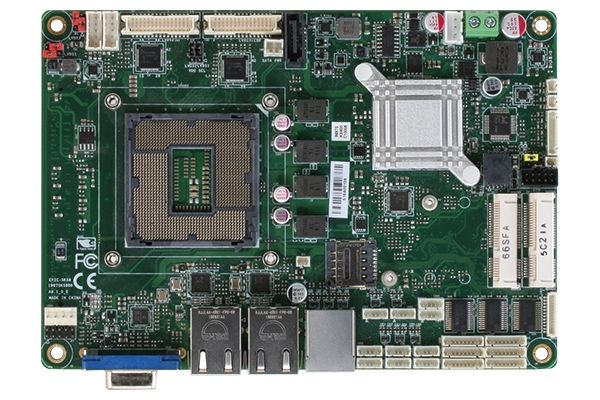

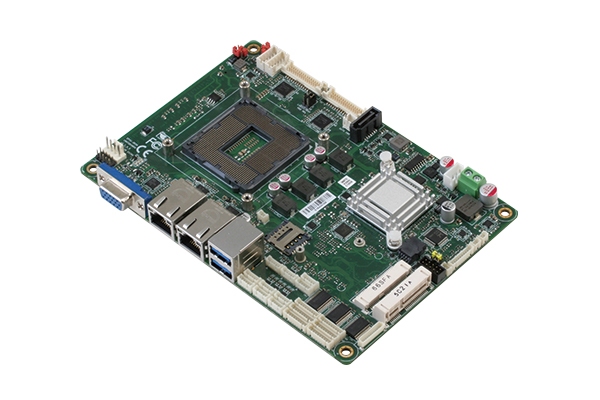

  • 6th/7th Generation Intel® Core™ i-S series Processor (Socket Type)
  • 9-24V Wide DC Input or 12V Only (Optional), Non-ECC DDR4 SODIMM x 1 Up to 16 GB
  • VGA/LVDS1/LVDS2 Display (LVDS1 Co-design with eDP, VGA with Internal and Rear Design)
  • USB 3.2 Gen 1 x 2, USB 2.0 up to 10 Ports
  • mSATA Half-size x 1, Mini-Card Full-size x 1 with UIM
  • HDA, SATA 6.0 Gb/s x 1, GPIO x 8, COM x 6 (COM2-5 with 5V/12V/RI)
  • Optional: SPK Amplifier, I2S Design

Specification

Processor

6th/7th Generation Intel® Core™ i3/i5/i7/Celeron®
(Support up to 54W SKU)

Form Factor

4” EPIC Board

System Memory

DDR4 (Non-ECC) SODIMM x 1, 2133MHz

Chipset

H110, Q170 (6W)

Expansion Interface

Mini-card x 1 (Full size)

BIOS

AMI

Wake on LAN

Yes

Watchdog Timer

255 Levels

USB

Rear I/O: USB 3.2 Gen 1 x 2
Internal: USB 2.0 x 10 (for Q170 SKU)

Serial Port

COM x 6
(All internal, COM2: RS-232/422/485, COM2-5 5V/12V/RI)

Ethernet

LAN x 2 (Real IO)

HDD

SATA 3.0 x 1

Audio

REALTEK ALC892 (Optional: 2W Amp, I2S)

Display I/O

8-bit

VGA / LCD Controller

6th/7th Generation Intel® Core™ i3/i5/i7/Celeron®

Video Output

VGA/LVDS1 (Optional: LVDS2/eDP)

Backlight Inverter Supply

Max. 12V, 2A

Power Requirement

9-24V (Optional: 12V)

Operating Humidity

0% ~ 90% RH, non-condensing

Operating Temperature

32°F ~140°F (0°C ~ 60°C)

Storage Temperature

-40 °F ~ 176 °F (-40 °C ~ 80 °C)

Certification

CE / FCC

Dimensions(L x W)

4.53" x 6.50" (115.062mm x 165.1mm)
