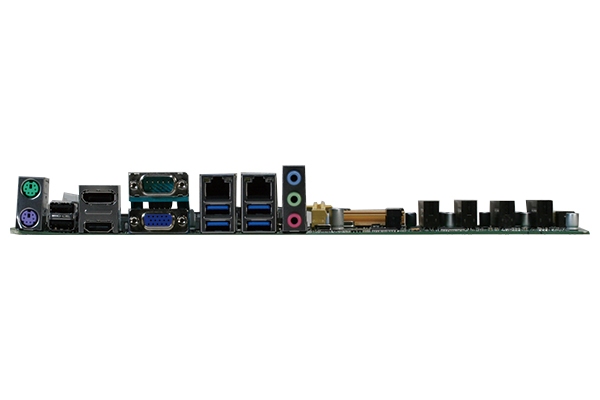

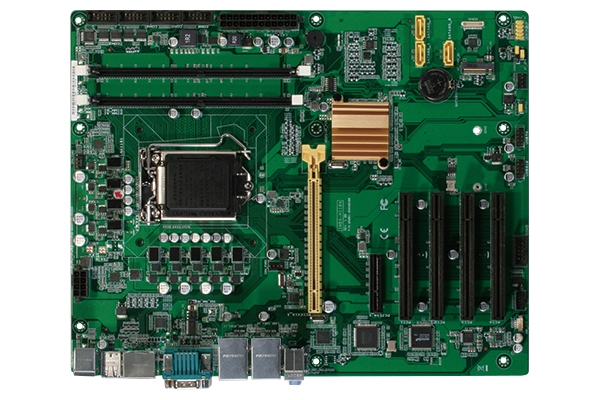

  • 7th/6th Generation Intel® Core™ LGA1151 Processor
  • DDR4 DRAM Support, 2400MHz, Max. 32GB
  • Two Independent Display: HDMI x 1, DP x 1, VGA x 1
  • Dual Intel® Gigabit Ethernet
  • M.2 Slot (M key) x 1
  • USB 3.2 Gen 1 Port x 4, USB 2.0 Port x 6

Specification

Processor

7th/6th Generation Intel® Core™ i7/i5/i3/Pentium®/
Celeron® 14nm LGA1151

Form Factor

ATX

System Memory

288-pin DIMM x 2, max. 32GB, DDR4 2400/2133/1867,
dual-channel

Chipset

Intel® H110

H/W Status Monitoring

Temperature Monitor on CPU/Chassis, Voltage Monitor on
Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis

Expansion Slots

PCIe [x16] x 1, PCIe [x4] (open edge) x 1, PCI x 4, M.2 M key
(22 x 80mm) x 1

Operating System

Windows® 7 32/64-bit (not supported when a Kaby
Lake processor is used),
Windows® 8.1 64-bit (not supported when a Kaby
Lake processor is used),
Windows® 10 64-bit, ,Linux Fedora 64bit

BIOS

128M bit Flash ROM x 1, AMI BIOS

Wake on LAN

Yes (WOL / PXE)

Watchdog Timer

1~255 step by software program

TPM

Nuvoton NPCT650ABBYX TPM2.0 (default : No)

Power State

S3, S4, S5

USB

USB 3.2 Gen 1 x 4, USB 2.0 x 2

Serial Port

RS-232 header x 5

Ethernet

LAN1: Intel® PHY I219V Gb LAN, LAN2: Intel® I211AT Gb

Storage

SATA 6.0Gb/s x 3, M.2 M key (22 x 80mm) x 1

Audio

Realtek® ALC887 (Colay with ALC886)

Graphics Chipset

Intel® HD Graphics

Multi Display

VGA+HDMI, VGA+DP, HDMI+DP

VGA

Up to 1920 x 1200 @60Hz (

DIO

8-bit x 1 (In/Out programmable)

Fan

4-pin CPU Fan x 1, 4-pin Chassis Fan x 2

Battery

Lithium battery

Power Requirement

24-pin ATX connector x 1, 8-pin ATX 12V Power connector
x 1

Operating Humidity

0% ~ 90% RH, non-condensing

Operating Temperature

32°F ~140°F (0°C ~ 60°C)

Storage Temperature

-40 °C ~ 85 °C

Gross weight

1.76lb (0.8 kg)

MTBF (Hours)

244,580
