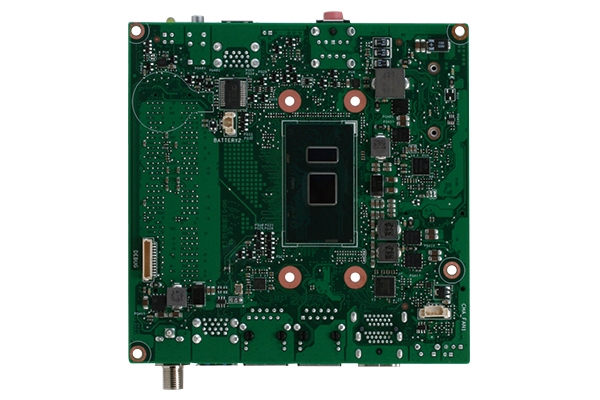

  • 6th Generation Intel® Core™ i7/i5/i3/Celeron® 15W BGA Processor
  • Dual Gigabit Ethernet
  • Dual HDMI Port
  • USB 3.2 Gen 1 Port x 4
  • COM Port x 1

Specification

Processor

6th generation Intel® 14nm ULT Core™, BGA CPU, 15W
TDP. i7-6600U 2C/4T GT2 2.6/3.4 GHz 4M/ i5-6300U 2C/4T
GT2 2.4/3.0 GHz 3M/ i3-610U 2C/4T GT2 2.3 GHz 3M/
Celeron® 3955U 2C/2T GT1 (f) 2.0 GHz 2M

Chipset

Intergrated into SoC

System Memory

Memory SODIMM x 2, max. 32 GB, DDR4 2133/1867 MHz
non-ECC, un-buffered memory

I/O Chipset

NCT5538D

Ethernet

Realtek 8111G Gb LAN x 2, RJ-45 x 2
Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis

Audio

Realtek® ALC887

TPM

Expansion Slots

M.2 2280 M-Key slot x 1 (PCIe x4 + SATA)
M.2 2230 E-Key slot x 1 (PCIe+USB)

BIOS

128Mbit Flash ROM, AMI BIOS

H/W Monitor

Temperature Monitor on CPU/System Voltage Monitor on
Vcore/5V/3.3V/12V Fan Monitor on Chassis

Watchdog Timer

1~255 steps by software program

Smart Fan Control

Chassis Fan

Wake on LAN/PXE

Yes (WOL/PXE)

Power State

S3, S4, S5

Graphics Chipset

AMD Geode™

Graphics Multi Display

CRT, TTL, LCD, LVDS

VGA

Upto 24-bit single channel TTL / LVDS

DVI

HDMI

HDMI 1.4 up to 4096 x 2160@24Hz

Display Port

LVDS

eDP

Backlight Control

Battery

Lithium battery

Operating Temperature

FANLESS : 0°C~40°C, FAN : 0°C~50°C

Storage Temperature

Operating Humidity

20%~90% R/H, non-condensing

Certificate

CE & FCC class A

Form Factor

NANO ITX: 4.72” x 4.72” (120mm x 120mm)

Weight

MTBF (Hours)
