  • 6th/7th Generation Intel® Core™/Celeron™ i3/i5/i7 U-Series SoC
  • DDR3L SODIMM x 1, up to 8 GB, non-ECC only
  • Intel® I219-LM Gigabit Ethernet x 1
  • 18/24-bit Dual Channel LVDS LCD ( eDP Optional), VGA, DDI up to 2
  • High Definition Audio Interface
  • SATA3 x 3 (SATA Port 3 for i5 / i7 sku only)
  • USB 2.0 x 8, USB 3.2 Gen 1 x 4, GPIO 8-bit, PCI-Express [x1] x 8

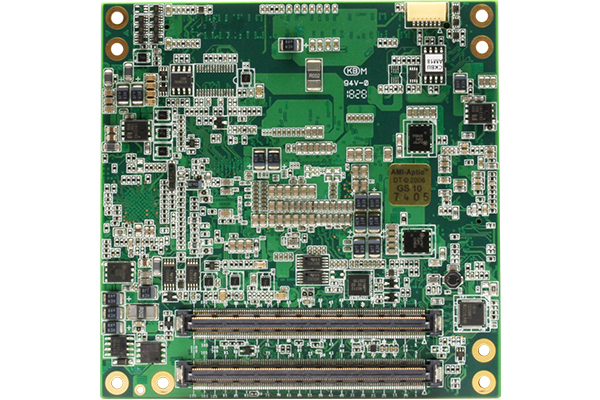

  • COM Express Type 6 Compact Size 95mm x 95mm

Specification

CPU

Onboard 6th/7th Generation Intel® Core™/Celeron™ i3/i5/i7
U-series SoC Processor

Form Factor

COM Express Compact Size, Type 6

Memory Type

DDR3L 1600, SODIMM x 1

Expansion Interface

PCIe[x1] x8, I2C, LPC, SMBus

BIOS

AMI BIOS, Legacy free

Wake on LAN

Yes

Watchdog Timer

255 Levels

USB

USB 2.0 x 8 , USB 3.2 Gen 1 x 4

Serial Port

2-Wire UART (Tx/Rx) x 2

Ethernet

Intel®PHY I219LM

HDD Interface

SATA3 x 2 ; i5 & i7 up to 3

Audio

High Definition Audio

GPIO

8-bit

Chipset

Onboard 6th/7th Generation Intel® Core™/Celeron™
U-series SoC

LVDS Interface

Support 18-bit and 24-bit dual channel

Power Requirement

Standard: +12V

Power Consumption

i7-7600U, 8GB DDR3L, full loading 1.32A@12V during
100% loading burn in test

Operating Humidity

10% ~ 80% relative humidity, non-condensing

Operating Temperature

32°F ~ 140°F (0°C ~ 60°C)

Storage Temperature

-40˚F ~ 185˚F (-20˚C ~ 70˚C)

Dimensions(L x W)

3.75” x 3.75” (95 mm x 95 mm)

MTBF (Hours)

80,000
