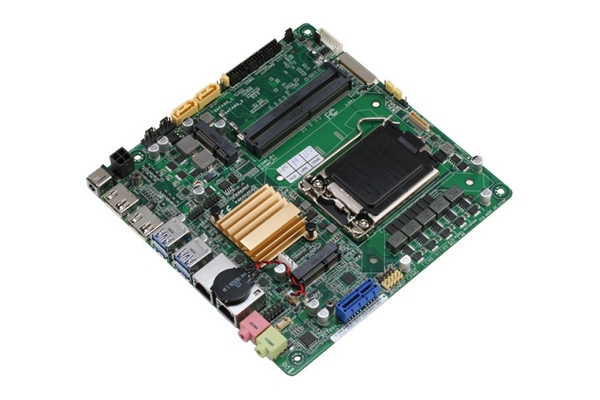

Specification
| Processor | 6th/7th Generation Intel® Core™ i7/i5/i3, LGA1151 Socket |
|---|---|
| Form Factor | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| System Memory | DDR4 2133/1867 MHz SODIMM x 2, Up to 32G |
| Chipset | Intel® H110 |
| H/W Status Monitoring | Temperature Monitor on CPU/System, Voltage Monitor on |
| Expansion Slots | PCIe2.0 [x1] x 1, Full-size Mini-Card (mSATA default) |
| Operating System | Windows® 7 32/64-bit, Windows® 8.1 32/64-bit, |
| BIOS | 64Mbit Flash ROM, AMI BIOS |
| Wake on LAN | Yes (WOL / PXE) |
| Watchdog Timer | 1~255 step by software program |
| TPM | Infineon SLB96XX TT 1.2/2.0 (default: No) |
| Power State | S3, S4, S5 |
| USB | USB 3.2 Gen 1 x 4 |
| Serial Port | Boxer header for COM (RS-232/422/485) x 1, |
| Ethernet | Realtek® PCIe Gb LAN 8111G x 2 |
| Storage | SATA3 (6.0Gb/s) x 2, Full Size Mini-Card (mSATA) |
| Audio | Realtek® ALC887 |
| Display Chipset | – |
| Display I/O | 40-pin LVDS connector x 1, 40-pin eDP connector |
| Multi Display | HDMI1+HDMI2, HDMI1+DP2, DP1+HDMI2, HDMI1+LVDS, |
| LVDS | Up to 1920 x 1200 @60 Hz, dual-channel 18/24-bit |
| DIO | Digital I/O header x 1 |
| Fan | 4-pin CPU Fan connector x 1, 4-pin Chassis Fan |
| Battery | Lithium battery |
| Power Requirement | 12 V DC |
| Operating Humidity | 0% ~ 90% RH, non-condensing |
| Operating Temperature | 32°F ~140°F (0°C ~ 60°C) |
| Storage Temperature | -40 °F ~ 185 °F (-40 °C ~ 85 °C) by E3815 |
| Gross weight | 1.1 lb (0.5 kg) |
| Dimensions(L x W) | 6.7" x 6.7"(170mm x 170mm) |
| MTBF (Hours) | 315,210 |
