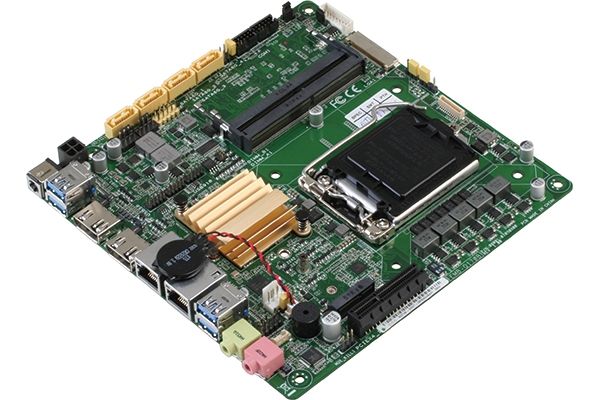

  • 6th/7th Generation Intel® Core™ i Series, LGA1151 Socket Processor
  • DDR4 SODIMM x 2, Up to 32 GB
  • Three Independent Display: DP x 2, eDP x 1, LVDS x 1
  • M.2 Slot (E-key) x 1 @Top Side, (M-key) x 1 @Bottom Side
  • PCI-Express [x4] x 1
  • SATA 6.0 Gb/s x 2, M.2 slot (M-key) x 1
  • PCI-Express [x16] (Gen3) x 1
  • Low Profile
  • 4K for DP/eDP
  • LAN1 Supports iAMT11.0

Specification

Processor

6th/7th Generation Intel® Core™ i7/i5/i3, LGA1151 Socket
Processor, Max.65W TDPs

Form Factor

Mini-ITX: 6.7” x 6.7” (170mm x 170mm)

System Memory

DDR4 2133/1867 MHz SODIMM x 2, Up to 32GB, Non-ECC,
Un-buffered Memory, Dual channel memory architecture

Chipset

NCT6791D

H/W Status Monitoring

Temperature Monitor on CPU/System, Voltage Monitor on
Vcore/5V/12V,Fan Monitor on CPU/Chassis

Expansion Slots

PCIe 3.0 [x4] x 1
M.2 M key (22 x 80 mm) at Bottom side x 1
M.2 E key (22 x 30 mm) at Top side x 1

Operating System

Windows® 7 32/64-bit, Windows® 8.1 32/64-bit,
Windows® 10 64-bit, Ubuntu16.04.02/Kernel4.8.0

BIOS

128Mbit Flash ROM, AMI BIOS

Wake on LAN

Yes (WOL / PXE)

Watchdog Timer

1~255 step by software program

TPM

Infineon SLB96XX TT 1.2/2.0 (default: No)

Power State

S3, S4, S5

USB

USB 3.2 Gen 1 (5 Gbps) x 4, USB 2.0 x 2

Ethernet

Intel® PCIe Gb LAN 219LM for vPro x 1, Intel® PCIe Gb
LAN 211AT x 1

Storage

SATA3.0 (6.0Gb/s) x 2, M.2 M-key (22 x 80 mm) at
bottom side x 1

Audio

Realtek® ALC887

Display Chipset

Intel® HD Graphics

Multi Display

2DP + LVDS, DP + eDP + LVDS, 2DP + eDP

LVDS

Up to 1920 x 1200 @60 Hz, dual-channel 18/24-bit

DIO

Digital I/O header x 1

Fan

4-pin CPU Fan connector x 1, 4-pin Chassis Fan
connector x 1

Battery

Lithium battery

Power Requirement

12V DC

Operating Humidity

0% ~ 90% RH, non-condensing

Operating Temperature

32°F ~140°F (0°C ~ 60°C)

Storage Temperature

-40 °F ~ 185 °F (-40 °C ~ 85 °C)

Gross weight

1.1 lb (0.5 kg)

Dimensions(L x W)

6.7" x 6.7"(170mm x 170mm)

MTBF (Hours)

292,450
