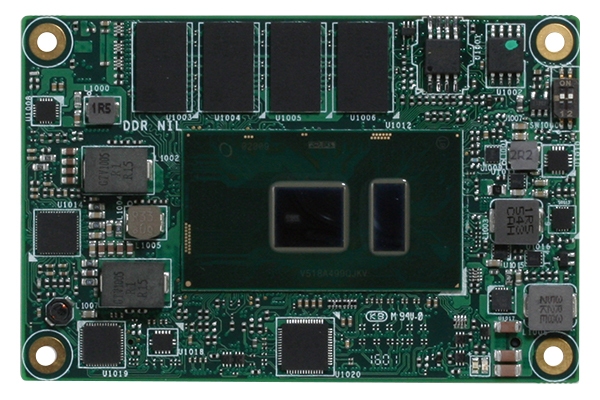

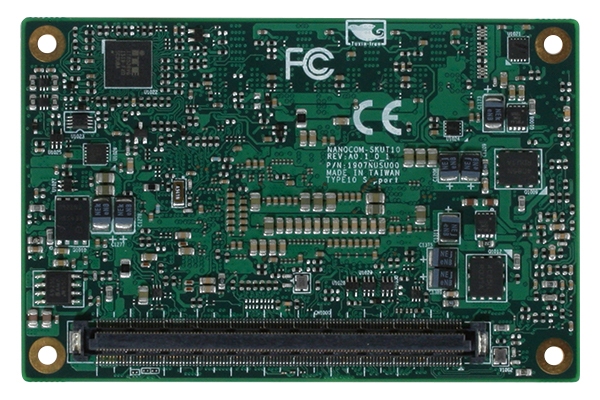

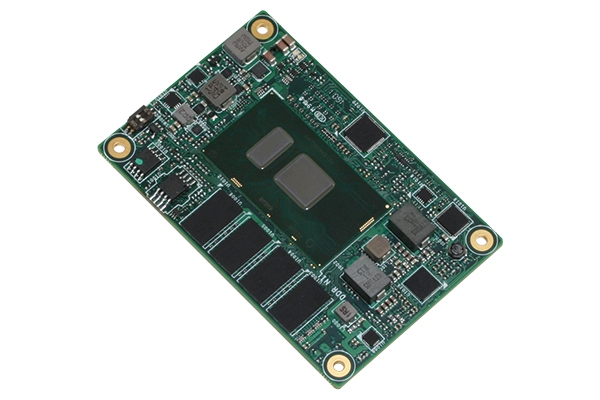

COM Express Type 10 with Intel® 6th gen Core ULT series CPU

  • Intel® Core™ i7-6100U series SOC
  • Onboard 4GB DDR4 memory
  • Gigabit Ethernet x 1
  • 18/24-bit Single-Channel LVDS LCDs/eDP, DDIx1
  • High Definition Audio Interface
  • SATA x 2
  • USB3.0 x2, USB2.0 x 8
  • PCI-Express〔x1〕 x 3
  • GPIO x 8, SMbus, I2C, LPC
  • COM Express Mini size, type 10, 84mm x 55mm
FacebookTwitterGoogle PlusPinterest

Specification

Processor

Intel® 6th Gen U series CPU upto i7-6600U

Form Factor

COM Express Mini size 84mm x 55mm

System Memory

4GB DDR4

Expansion Interface

PCIe [x1] x 4, I2C, LPC, SMBus, GPIO

BIOS

AMI BIOS, Legacy free BIOS

Wake on LAN

Yes

Watchdog Timer

ITE IT8528VG

USB

USB3.0 x 2,
USB2.0 x 8

Serial Port

2-wire UART x 2 ( TX/RX)

Ethernet

Intel® I219 GbE

Storage

SATA 6.0 Gb/s x 2

Audio

HD Audio x 1

GPIO

8 bit

H/W Status Monitoring

Support CPU temperature monitoring

Chipset

SoC, GT2,

Graphic Engine

LVDS/eDP, DDI x1

LVDS Interface

Supports 18bit and 24bit Single channe

Power Requirement

Normal: +12V

Power Consumption

i7-6600U 12V@1.5A, i3-6100U 12V@1.42A.
Under 100% loading. CPU Set to 15W TDP.
CPU base frequency may change accordingly.

Operating Humidity

0% ~ 90% relative humidity, noncondensing

Operating Temperature

32°F~ 140°F (0°C ~ 60°C)

Storage Temperature

-4°F ~ 158°F (-20°C ~ 70°C)

Dimensions(W x D x H)

84mm x 55mm

MTBF (Hours)

80,000
