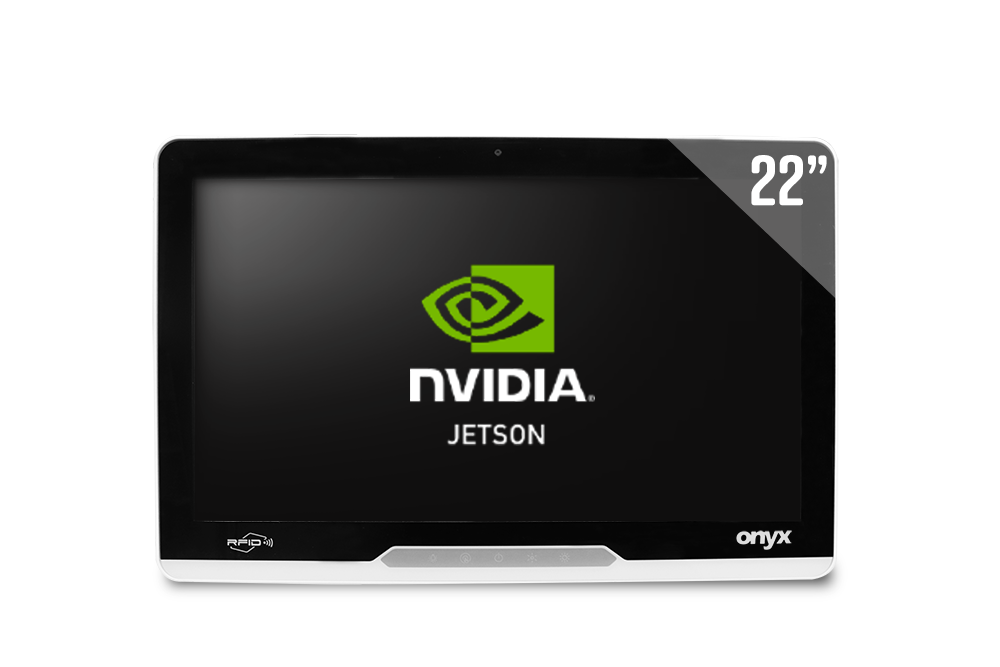

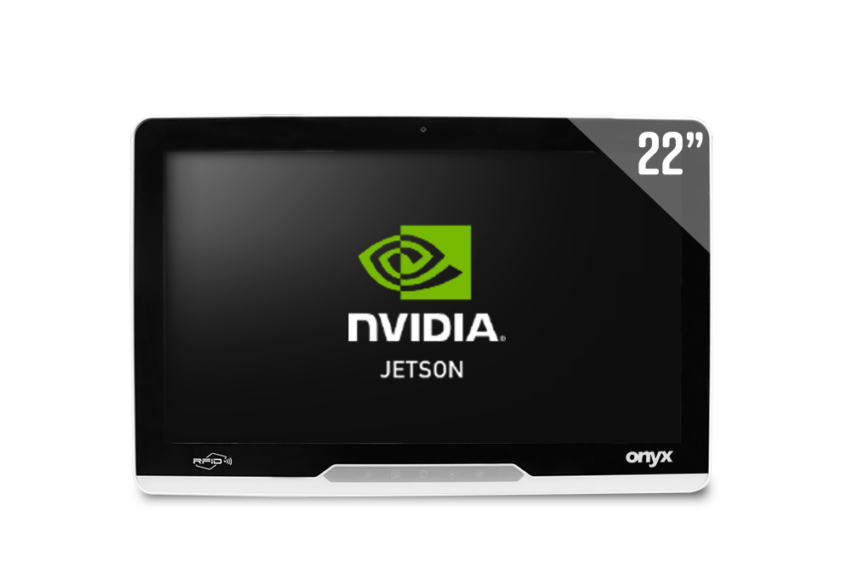

  • 22″ Full HD LCD Wide Viewing Angle
  • Capacitive Multi-Touch Screen
  • NVIDIA Jetson AGX Orin Platoform for Medical AI usage
  • Support optional 3G / 12G SDI or HDMI input for image capture





Specification

CPU

NVIDIA Jetson AGX Orin
12-core Arm® Cortex®-A78AE v8.2 64-bitCPU3MB L2 + 6MB L3 /
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3

System Memory

64 / 32GB 256-Bit LPDDR5

Graphics

NVIDIA Ampere architecture
2048 NVIDIA CUDA® cores and 64 Tensor Cores /
1792 NVIDIA CUDA® cores and 56 Tensor Cores

Storage

64GB eMMC and M.2 NVMe SSD x 1

OS support

Linux

Security

TPM2.0 Chip (Infineon SLB9670XQ2.0)

Speaker

2W x 2

Function Key

Power On/Off, LCD,Brightness Up/Down, Touch
Screen On/Off

Power Requirement

100~240V AC

Display Size

22" LCD

Max. Resolution

1920 x 1080

Luminance(cd/m2)(TYP)

250 nits

View Angle

178˚(H)/178˚(V)

Contrast Ratio

1000:1

Back Light Life Time

50,000 Hours

Touch Screen

Capacitive Multi-Touch

USB

USB Type C x 2 for USB 3.2 Gen 1,
USB Type A x 2 for USB 2.0

Ethernet

RS-232 x 2 or x1 (when backup battery is installed)

Video in(Optional)

3G / 12G SDI or HDMI

Serial port

RS-232 x 2

Operating Temperature

0°C ~ 35°C(32°F ~ 95°F)

Storage Temperature

-20°C ~ 60°C(-4°F ~ 140°F)

Mounting VESA

75/100 mm

Degree of protection

IP65 in the front, IPX1 in the back

Dimension

532 x 345 x 65 mm

Package Size

TBC

Gross Weight

TBC

Net Weight

TBC

Certifications

CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
