  • Intel 11th Gen Tigerlake, Fan-Less Implementation
  • Windows 11 and IGEL Compliant

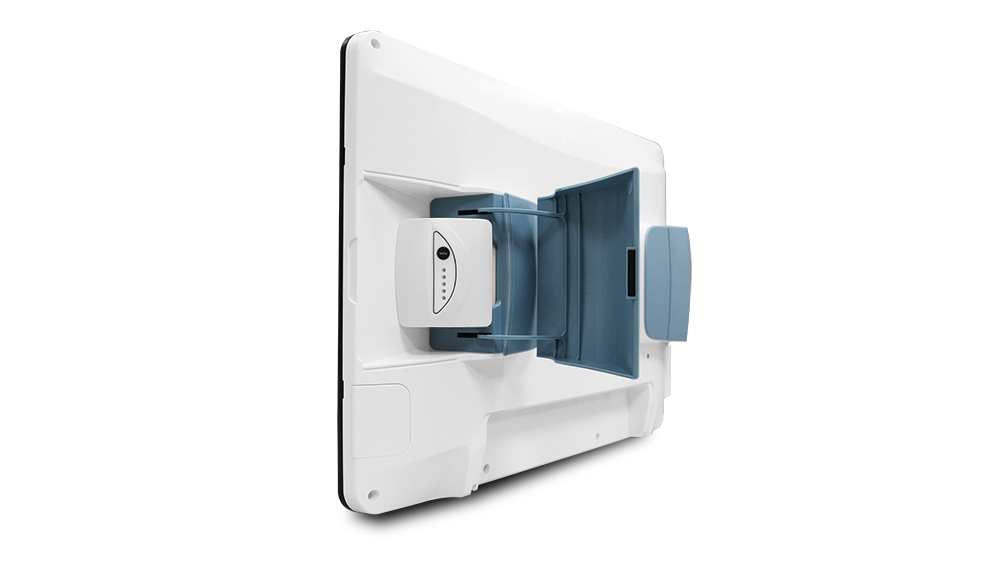

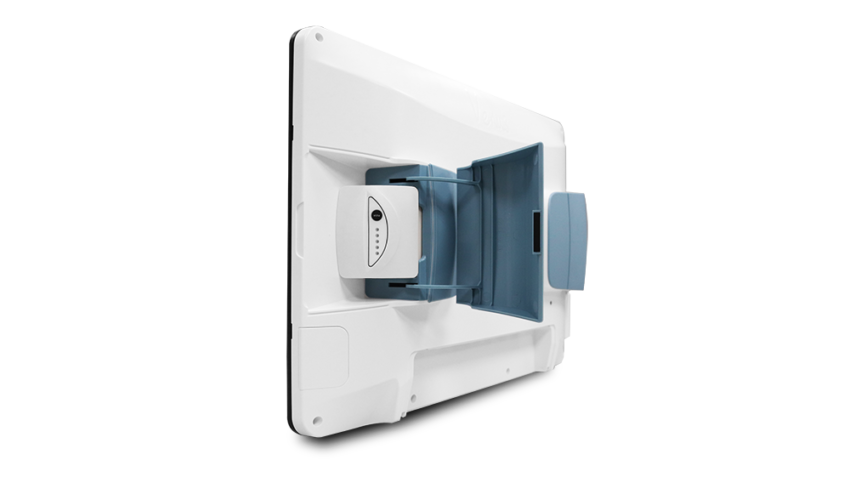

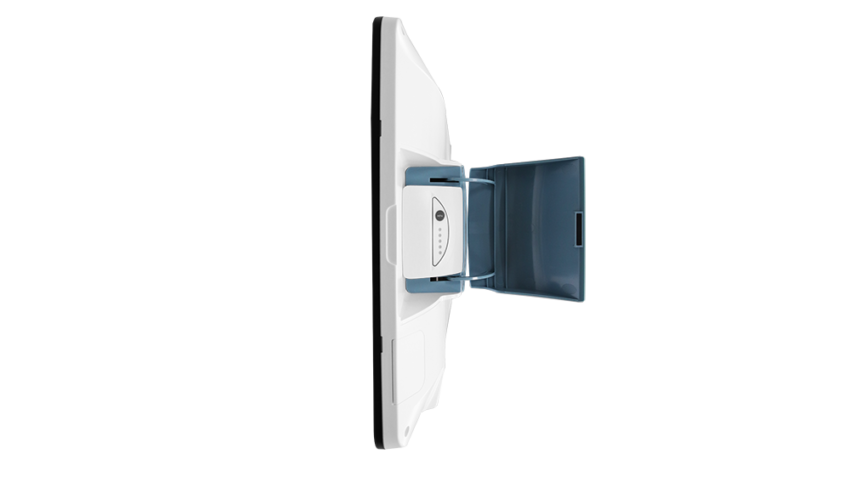

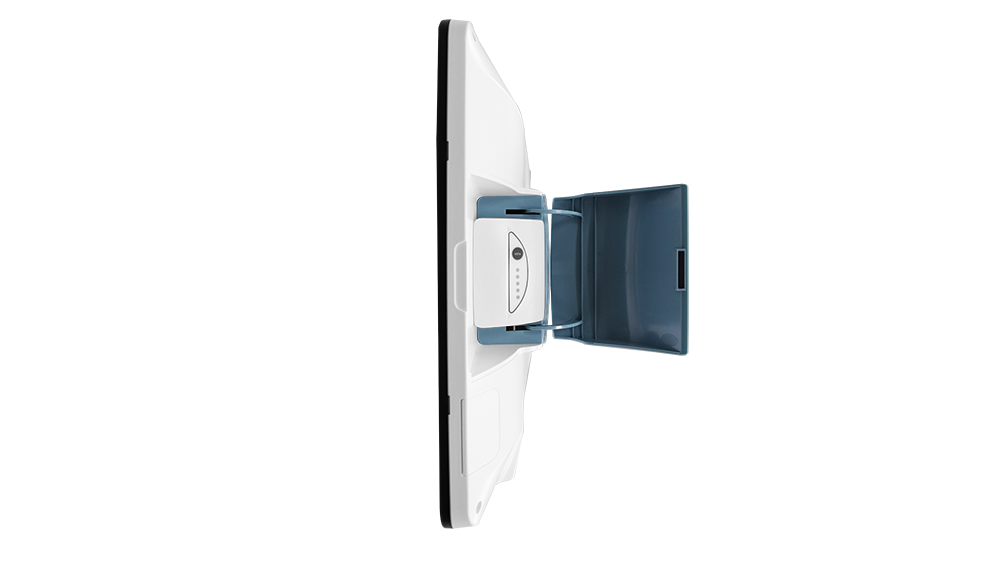

  • Dual Hot Swap Batteries
  • Easy Cleaning and Anti-Bacterial Surface
  • Internal Imprivata-Compliant RFID Reader (Optional)
  • WiFi 6 (Optional)
  • Compliant with All VENUS Batteries
  • Remotely Manageable by Central IT Departments

Specification

Processor

Intel® 10nm 11 Gen. Tiger Lake i7/i5/i3/Celeron

System Memory

DDR4 up to 16GB

OS Support

Microsoft® Windows 11 Microsoft® Windows 10 (64bit) Ubuntu 20.04 LTS IGEL (thin client solution)

Graphics

Intel® UHD Graphics

Storage

m.2 SSD up to 512 GB

Wireless Communication

802.11 ac/a/b/g/n + BT 4.1 (optional) Wifi6 + BT 5.2 (optional)

Touchscreen

Projective Capacitive Touch Sceen (Optional)

Speaker

3Wx2

Trusted Platform Module

TPM 2.0

Security

Smart Card Reader (optional) Imprivata RFID reader (optional) Barcode reader (optional)

Water/ Dust Protection Rating

Front IP65 ; Rear IPX1

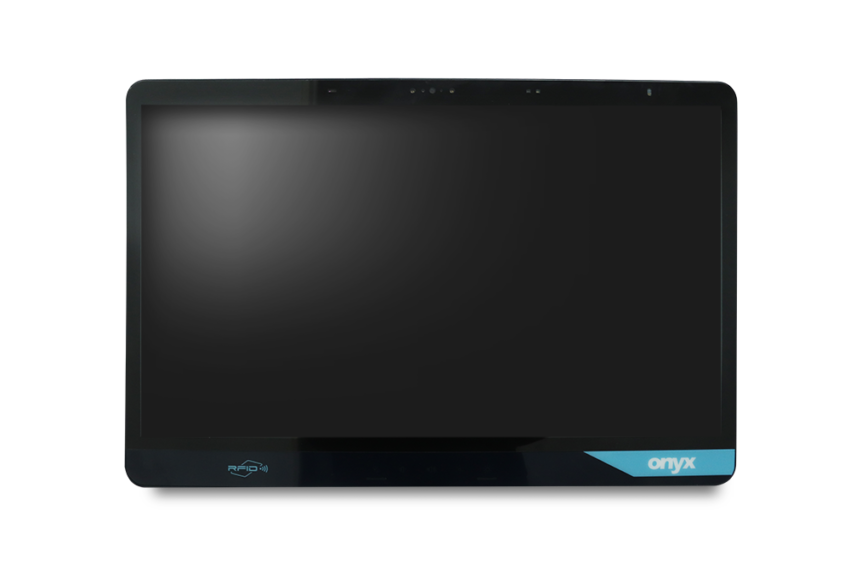

Display Size

23.8"

Resolution

FHD 1920 x 1080

Max. Colors

16.7M

Contrast Ratio

3000:1

Luminance (cd/m2)

250

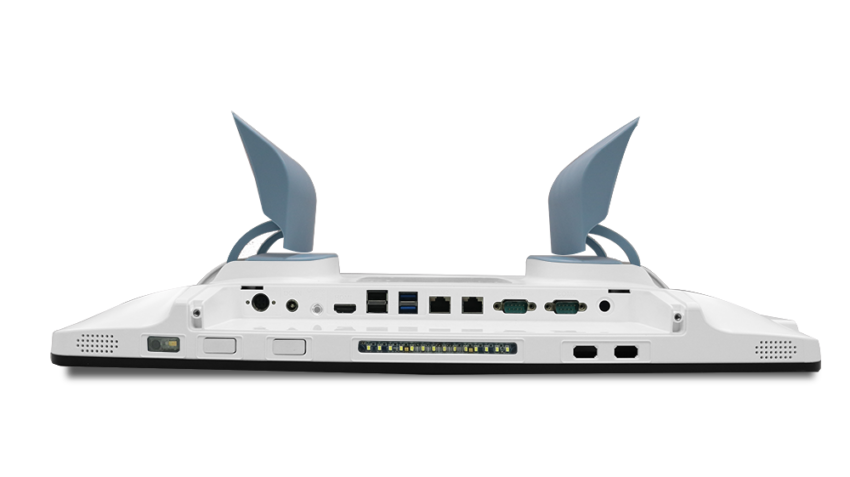

USB

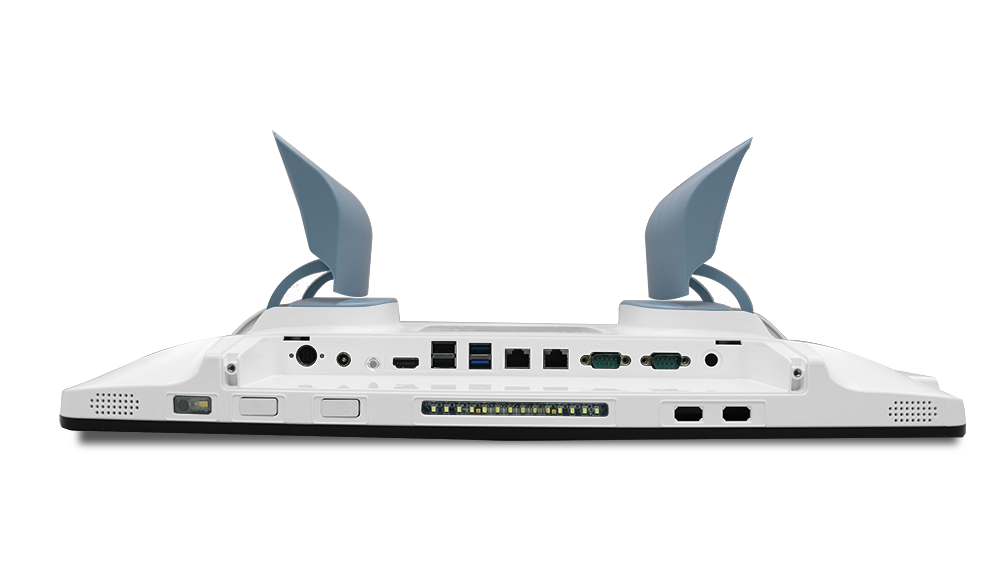

Rear I/O :USB 3.0 x2, USB 2.0 x2 Front button I/O : USB 3.0 x2

Video Out

HDMI 1.4 x1

COM

COM port x2

Audio

Combo audio port x1

Ethernet

1.5kv isolated Gigabit LAN x2

DC-In

19V DC-in x1

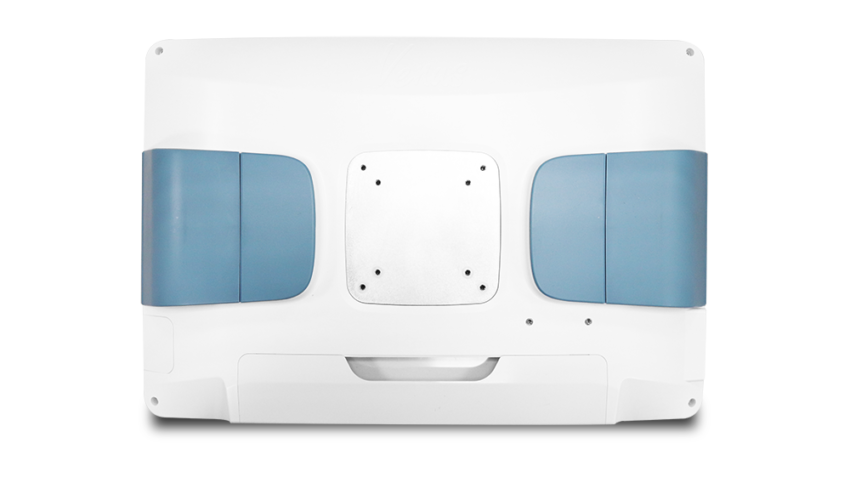

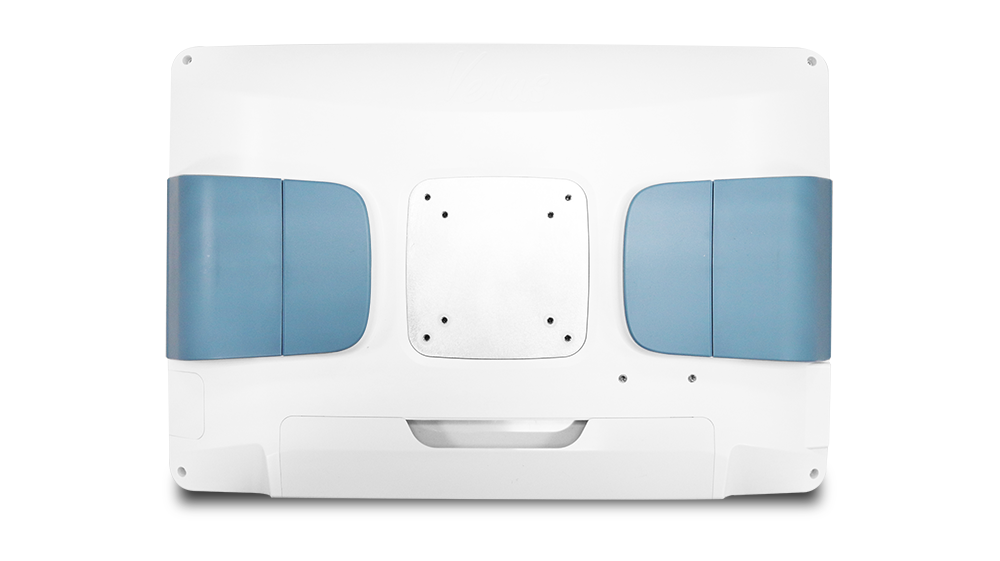

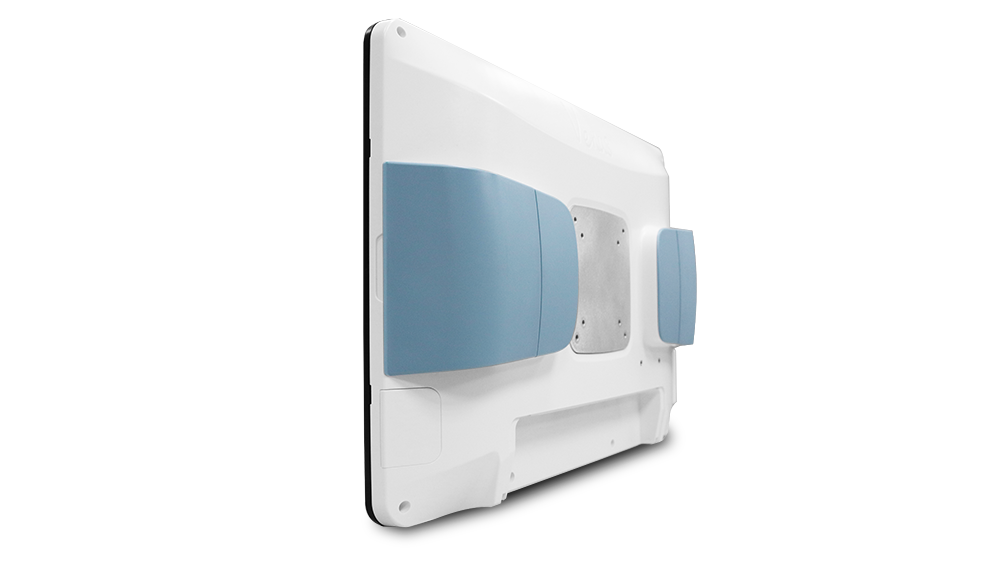

VESA

75/100 mm VESA mount

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Humidity

10%~95%@35°C, non-condensing

Dimensions

560(L) x 78.4(W) x373(H) mm

Package Dimension (W x D x H)

730(L) x 240(W) x 550(H) mm

Net Weight

7kg

Addtional Information

Application

  • PACS & Radiology
  • Exam Room
  • Physician Clinic
  • Telemedicine

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
