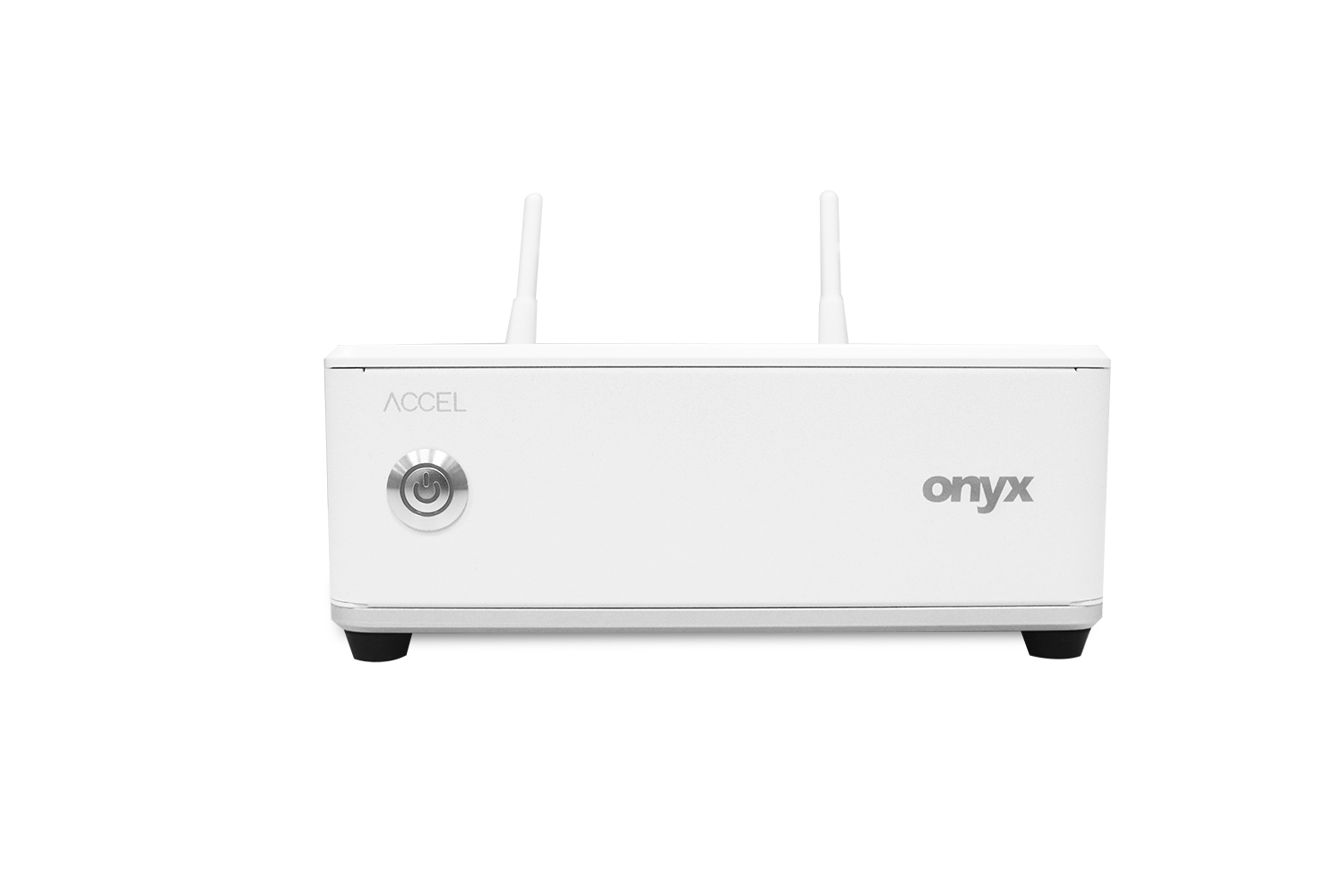

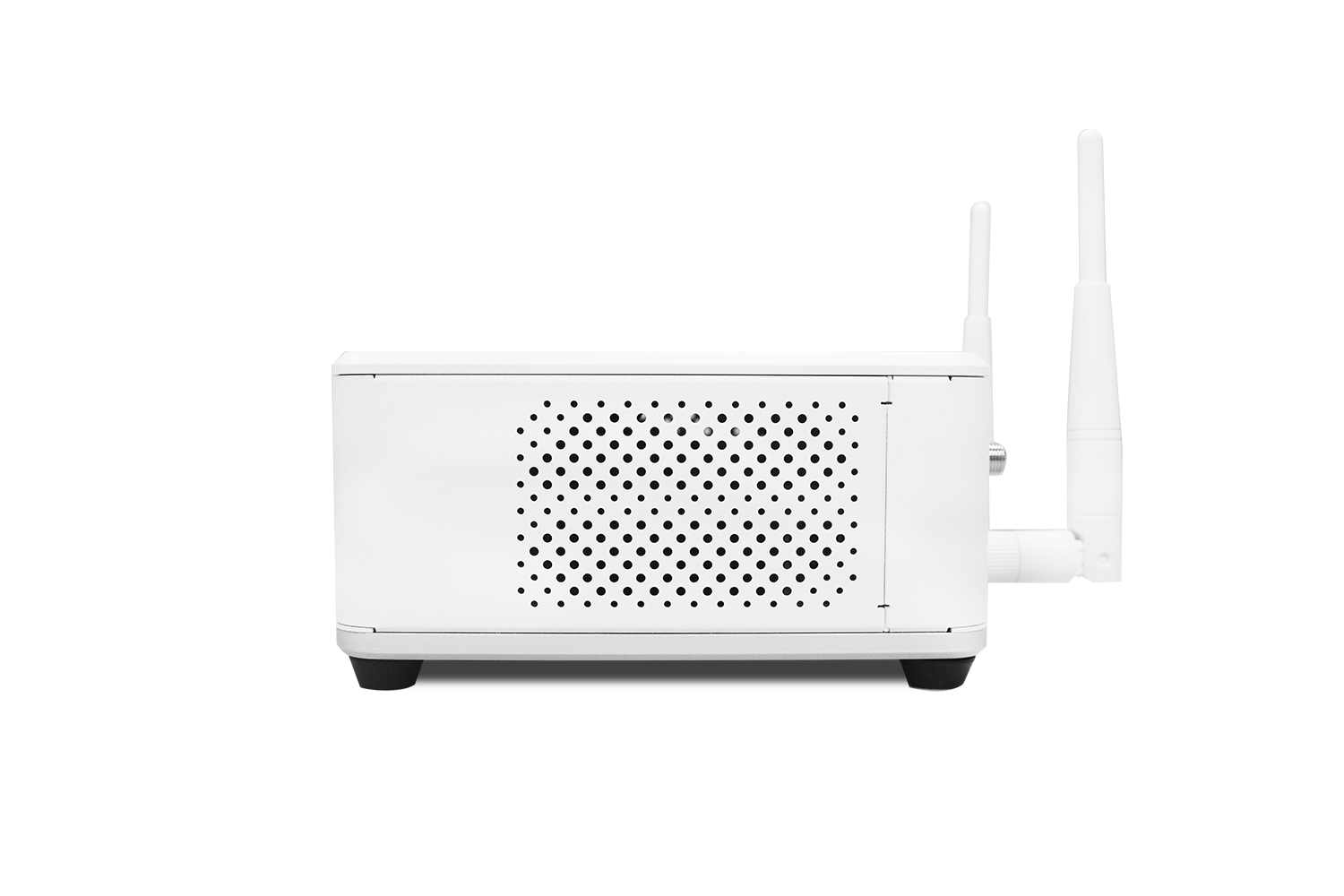

  • NVIDIA Jetson AGX Xavier Platform for Medical AI Applications
  • 512-core Volta GPU with Tensor Cores
  • Supports Optional 3G or 12G SDI Input for Image Capture
  • Supports Dual 4K Display Output (HDMI and Display Port)
  • Supports Optional Internal Speaker
  • Medical Certification
  • Palm-Sized Dimensions with Powerful AI-Computing



Specification

AI Engine

Nvidia Jetson AGX Xavier

CPU

8-Core ARM v*.2 64bit CPU, 8MB L2 + 4MB L3

System Memory

32GB 256-Bit LPDDR4

Graphics

512 Core Volta GPU with Tensor Cores

Storage

32GB eMMC Onboard, Micro SD card Slot, M.2 M Key 2280

OS Support

Linux with Jetpack 4.4.1

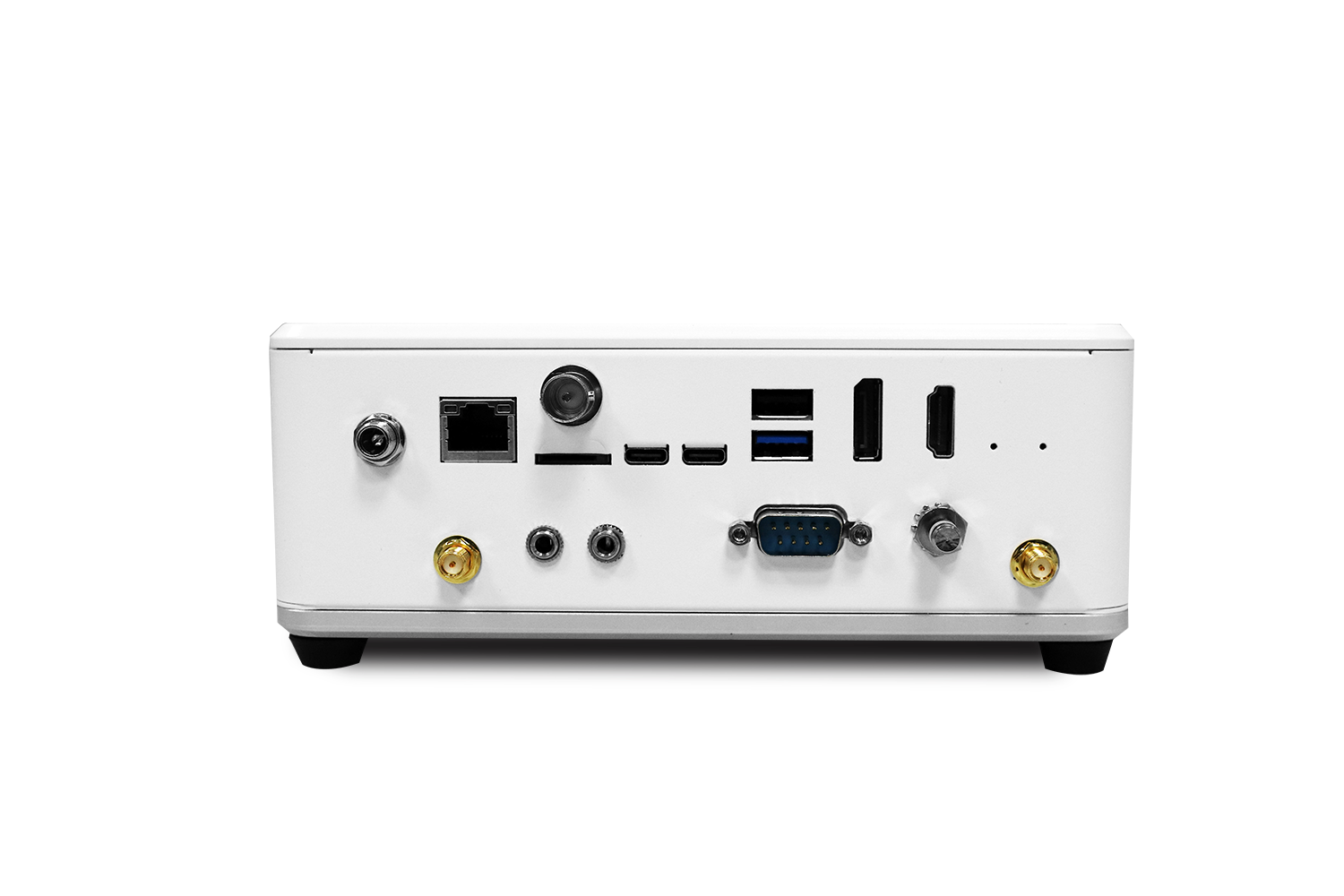

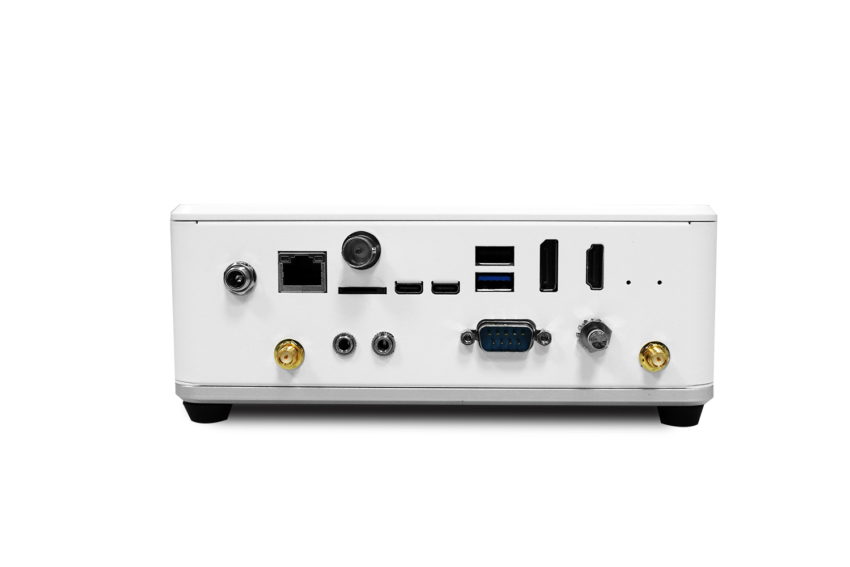

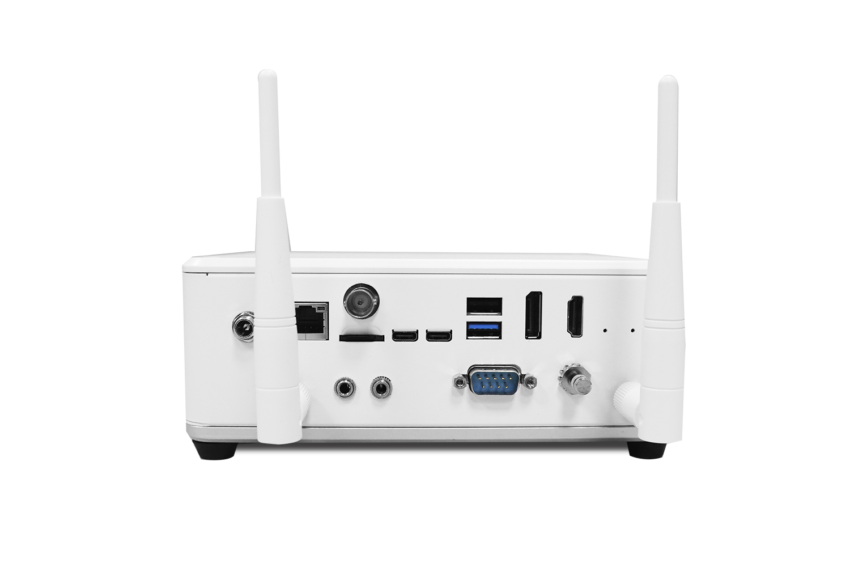

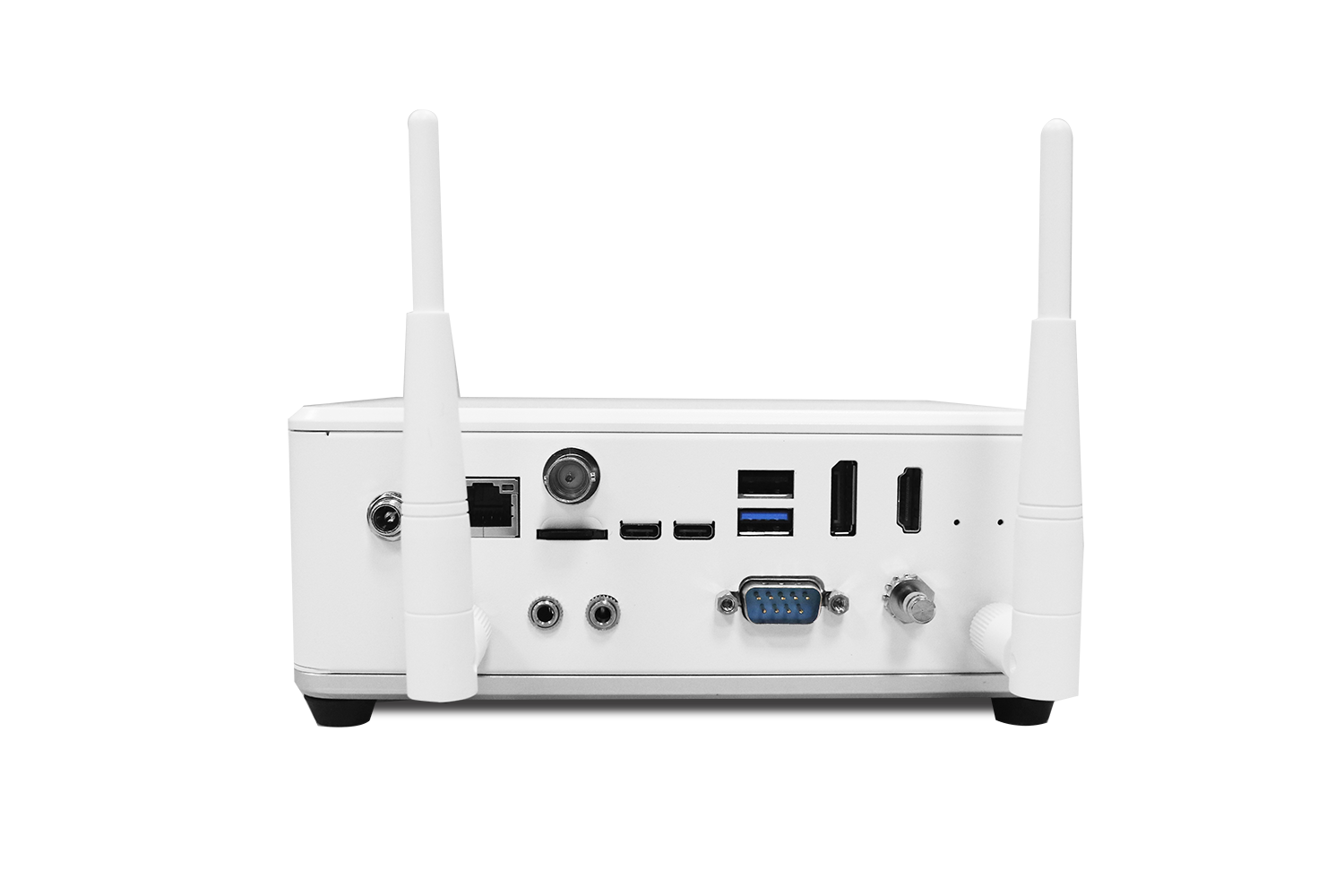

USB

USB Type C x 2 for USB 3.1
USB Type A x 1 for USB 3.0
USB Type A x 1 for USB 2.0

Ethernet

Gigabit LAN x 1

Video Out

HDMI 2.0 x 1
Display Port 1.4 x 1

Audio

Mic-in x 1, Line out x 1

COM

RS232 x 1

Power

Medical adapter 12V 84W

Operating Temperature

0 to 35°C

Storage Temperature

-20C to 60°C

Dimensions (W x D x H)

184 (W) x 145 (L) x 66 (H) mm

Package Size (W x D x H)

290 (W) x 225 (L) x 190mm (H)

Gross Weight

TBD

Net Weight

TBD

Addtional Information

Application

  • Medical AI Applications
  • AI/Deep Learning

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
