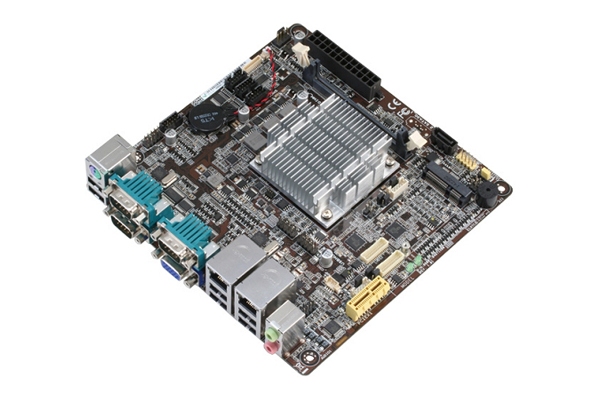

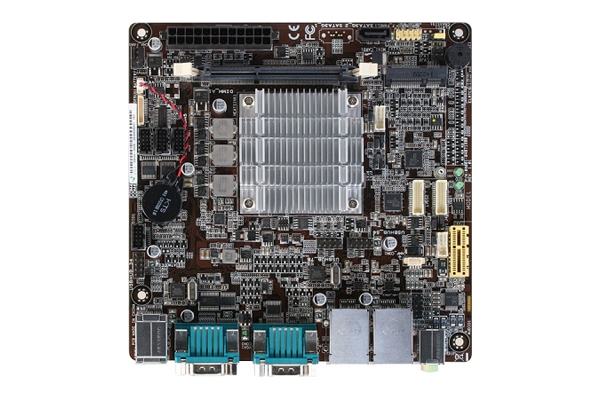

Thin Mini-ITX Embedded Motherboard with Intel® Atom™ J1900 Processor, SATA2 x 1, USB2.0 x 10, Dual LVDS

  • Intel® Celeron™ J1900 Processor
  • Realtek 8111G, Gigabit Ethernet x 2
  • Dual Displays: VGA + LVDS, Dual LVDS
  • SATA 3.0Gb/s x 1
  • USB 2.0 x 12
  • Full-size Mini Card with mSATA x 1, PCI-E[x1] x 1
  • ATX Power
FacebookTwitterGoogle PlusPinterest

Specification

Processor

Processor J1900 Bay Trail-D (4C @ 2 GHz CPU,
688/854 (Turbo) GFX, ~10W TDP)

Form Factor

Mini-ITX

System Memory

SODIMM x 1, max. 8GB, 204-pin DDR3L 1333 MHz, non-ECC, un-buffered

Chipset

I/O Fintek 81866D

H/W Status Monitoring

Temperature Monitor on CPU/System, Voltage Monitor on Vcore/5V/3.3V/12V, Fan Monitor on CPU/Chassis

Expansion Interface

Full-size Mini-Card(mSATA default, PCIe optional) x 1,PCI-E[x1] x 1

Operating System

Windows 7 32/64 bit, Windows 8.1, Linux Fedora

BIOS

64Mbit Flash ROM, AMI BIOS

Wake on LAN

Yes (WOL / PXE)

Watchdog Timer

1~255 step by software program

TPM

Infineon SLB9635 TT 1.2 (optional)

Power State

S3, S4, S5

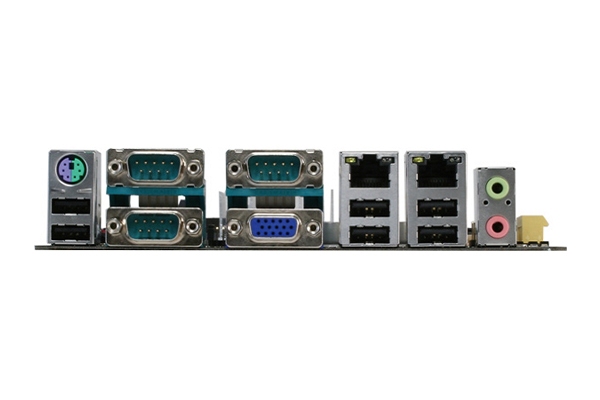

USB

USB 2.0 x 10 (4 ports in mid-board, 6 ports on rear I/O)

Serial Port

RS-232 x 5, RS-232/422/485 x 1 optional 5V/12V/RI (COM1)

Ethernet

Realtek PCIe GB LAN 8111G x 2, RJ-45 x 2

Storage

SATA 3 Gb/s(one SATA colay with mSATA) x 2

Audio

Realtek® ALC887 (colay ALC892/886), Mic-in, Line-out

Display Chipset

Intel® HD Graphics

Display I/O

LVDS x 2, VGA x 1

Multi Display

VGA+LVDS, Dual LVDS

VGA

Up to 1920 x 1200 @60 Hz

LVDS

Up to 1920 x 1080 @60Hz, Dual Channel 18/24 (via CH7511)

DIO

8-bit Programmable Digital I/O interface (4-in/4-out)

PS/2 Port

PS/2 for keyboard / Mouse x 1

Fan

Chassis Fan connector x 1 (4-pin)

Battery

Lithium battery

Power Requirement

24-pin ATX main power connector x 1

Power Compliance

Compliant with EuP / ErP

Operating Humidity

0% ~ 90% RH, non-condensing

Operating Temperature

32°F ~140°F (0°C ~ 60°C)

Storage Temperature

-40 °F ~ 185 °F (-40 °C ~ 85 °C) by E3815

Gross weight

1.1 lb (0.5 kg)

Dimensions(W x D x H)

6.7" x 6.7"(170mm x 170mm)

MTBF (Hours)

100,000
