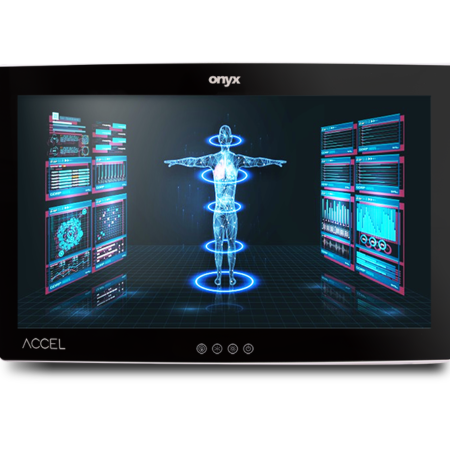

32” 4K UHD Medical Station

  • 6th Generation Intel® Core i7/Xeon Processor
  • 32” ultra HD (3840×2160) multi-touchscreen (capacitive)
  • High Contrast (up to 1350:1); high luminance (up to 700 nits)
  • Hardware-level data security (Trusted Platform Module, TPM)
  • Intel® remote management (Active Management Technology)
FacebookTwitterGoogle PlusPinterest

Additional information

Processor

Intel® 6th Generation Xeon E3-1505M v5 2.8GHz Quad
Core / Core i7-6820QE 2.8GHz Quad Core

Chipset

CM236 (for Xeon) / QM170(for Core i7)

System Memory

ECC (for Xeon) / Non-ECC (for Core i7) DDR4 SODIMM up to 32GB

Expansion

PCI Express[x16] x1, PCI Express[x4] x1, PCI Express[x1] x1)

Storage Disk Drive

2.5” SATA Hard Disk Drive/Solid State Disk Drive x4

Security

Trusted Platform Module 2.0

Wireless Communication

802.11ac/a/b/g/n, Bluetooth V4.1

Speaker

5W x 2

Function Key

Power On/Off, Speaker Volume Up/Down, LCD
Brightness Up/Down, LCD On/Off, Touch Screen On/Off

Power Requirement

100~240V AC

OS Support

Windows® 7, Windows® 8.1, Windows® 10, Linux®

Size

32” LCD

Resolution

3840 x 2160

Luminance

350 nits / 700 nits

View Angle

178˚(H)/178˚(V)

Contrast Ratio

1000:1 / 1350:1

Back Light Life Time

30,000 Hours

Touch Screen

Capacitive Multi-Touch

USB

USB 3.0 x4

Serial Port

Isolated RS-232 x2(optional)

Ethernet

Isolated Gigabit LAN x2

Audio

Mic(optional), Line out(optional)

Video Out

Display Port x1(optional)

Video In

HDMI x1 (optional)

Power Consumption

TBD

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C(-4°F ~ 140°F)

Mounting

VESA 100mm

Degree of protection

IP54

Net Weight

TBD

Package Dimension (W x D x H)

TBD

Certifications

CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1),
FCC: Part 18 Class B,
UL: ANSI/AAMI ES60601-1:2012 (V3.1),
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)

Product Video

Coming soon…

Description

Application

  • EMR/EHR Solution
  • DICOM to PACS Conversion
  • Organ Transplantation
  • Surgery

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
