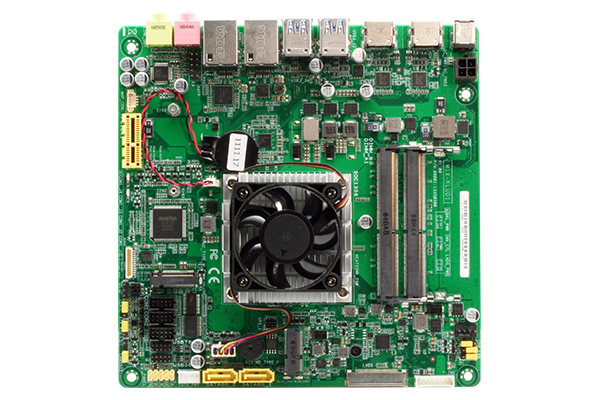

• Mini-ITX, 14nm, FCBGA1356 7th Gen Intel® Core™ processor family, 15~25W TDP
  • DDR4 SODIMM x 2, Up to 32GB
  • Three Independent Display: VGA x 1 or HDMI x 1, eDP x 1 or LVDS x 1
  • Intel® LAN i211AT x 1, 219LM for iAMT 12.0 x 1
  • M.2 Slot (M-key) x 1, M.2 Slot (E-key) x 1
  • PCIe3.0 [x1] x 1
  • 12V DC



14nm 7th Generation Intel®
Core™ i7-7600U, 2C/4T, 2.8/3.9(turbo)GHz, 4M,
300MHz/1.15GHz (Turbo) GFX,
~25W TDP
Core™ i5-7300U, 2C/4T, 2.6/3.5(turbo)GHz, 3M,
300MHz/1.10GHz (Turbo) GFX,
~25W TDP
Core™ i5-7200U, 2C/4T, 2.5/3.1(turbo)GHz, 3M,

Form Factor

Mini-ITX: 6.7” x 6.7” (170mm x 170mm)

System Memory

SODIMM x 2, max. 32GB, DDR4-2133 non-ECC, unbuffered

H/W Status Monitoring

Temperature Monitor on CPU/System, Voltage Monitor on
Vcore/5V/12V,Fan Monitor on CPU/Chassis

Expansion Slots

PCIe 3.0 [x1] x 1
M.2 M key (22 x 80 mm) x 1, SATA & PCIe [x4]
M.2 E key (22 x 30 mm) x 1 for Wireless-wifi module

Operating System

Windows® 10 64-bit


128Mbit Flash ROM, AMI BIOS

Wake on LAN

Yes (WOL / PXE)

Watchdog Timer

1~255 step by software program


NPCT650ABBYX TPM2.0 onboard (default: No)

Power State

S3, S4, S5


USB 3.2 Gen 1 (5 Gbps) x 4


Intel® PCIe Gb LAN 219LM for vPro (i7-7600U/i5-7300U) x
1 Intel® PCIe Gb LAN 211AT x 1


M.2 M key (22 x 80mm) for PCIe [x4]/SATA storage
x 1, SATA 6.0Gb/s x 2, 4-pin SATA power x 1


Realtek® ALC887 with AMP

Display Chipset

Intel® UHD Graphics

Display I/O

HDMI x 2

Multi Display

HDMI x 2, eDP x 1 or LVDS x 1


LVDS Up to 1920 x 1200 @60Hz, dual-channel 18/24 bit


8-bit x 1 (In/Out programmable)


4-pin CPU Fan connector x 1, 4-pin Chassis Fan
connector x 1


Lithium battery

Power Requirement

12V DC

Operating Humidity

0% ~ 90% RH, non-condensing

Operating Temperature

32°F ~140°F (0°C ~ 60°C)

Storage Temperature

-40 °F ~ 185 °F (-40 °C ~ 85 °C)

Gross weight

1.1 lb (0.5 kg)

Dimensions(L x W)

6.7" x 6.7"(170mm x 170mm)
