  • Intel® 9th Generation Core™ i7/i5 Processor
  • Supports Dual Channel DDR4 2666 SODIMM up to 64GB
  • 24″ Full HD High Contrast LCD
  • Capacitive Multi-Touch Screen
  • Two Gigabit Ethernet
  • High Speed USB 3.2 Gen1 Ports
  • RS-232 x 2
  • 8MP Camera with Mic (optional)
  • PCI-Express x [4] x 1 (optional)
  • 25Wh Backup Battery (optional)
  • Imprivata RFID Reader (optional)
  • Reading Light

Specification

Processor

Intel® 9th Generation Core i5-9500TE 6 Cores 3.6GHz, Intel® 9th Generation Core i7-9700TE 8 Cores 3.8GHz

System Memory

Supports Dual-channel DDR4 2666 SODIMM up to 64GB

Chipset

Intel® H310

OS Support

Windows® 10, Windows® 11, Linux®

Storage

M.2 2242 SSD x 1, 2.5" SATA Hard Disk Drive/SSD x 1

Security

Trusted Platform Module 2.0, RFID Reader (optional) Smart Card Reader x 1 (optional)

Wireless Communication

802.11 ac/a/b/g/n(optional), 802.11 ax(optional), Bluetooth 5(optional)

Speaker

2Wx2

Function Keys

Reading Light On/Off, Touch Screen On/Off, LCD Brightness Up/Down

Power Requirement

AC 80 to 264V

Size

24" LCD

Resolution

1920 x 1080

Luminance

250 nits

View Angle

178˚(H)/178˚(V)

Contrast Ratio

3000:1

Back Light Life Time

30,000 Hours

Touchscreen

Capacitive Multi-Touch

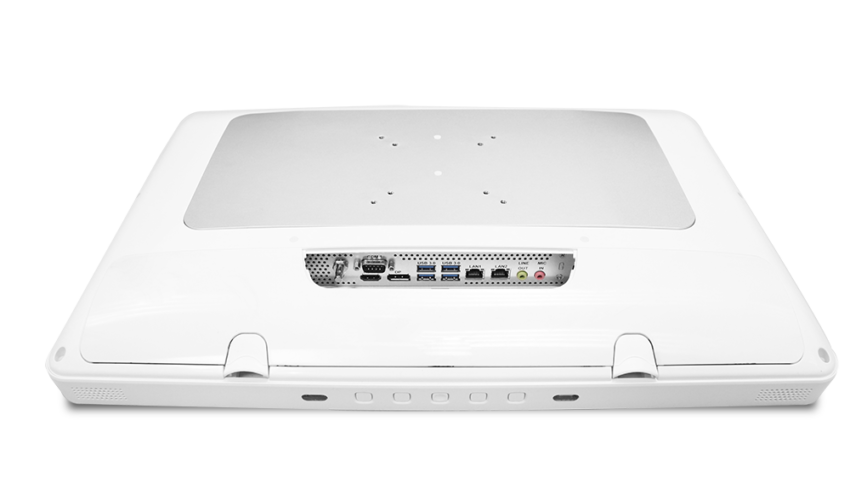

USB

USB 3.2 Gen 1 x 4

Serial Port

RS-232 x 2 or x 1 ( When backup battery is installed)

Ethernet

1.5KV Isolated Gigabit LAN x 2

Video Out

(Supports resolution up to 3840 x 2160), Display Port 1.2 x 1, HDMI 1.4b x 1

Audio

Mic-in, Line-out

Operating Temperature

0°C ~ 35°C(32°F ~ 95°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Mounting

VESA 75/100 mm

Degree of protection

IP65 in the front ; IP54 in the back

Dimensions

586 x 381 x 67mm

Package Dimension (W x D x H)

TBD

Gross Weight

TBD

Net Weight

8.7kg (19.2 lbs)

Certifications

CE: EN 60601-1-2:2015(V4.0), cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1), EN 60601-1:2006/A1:2013(V3.1), FCC: Part 18 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1)

Addtional Information

Application

  • Telemedicine
  • EHR/EMR
  • Nursing Station
  • Patient Ward
  • Long Term Care Facility

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
