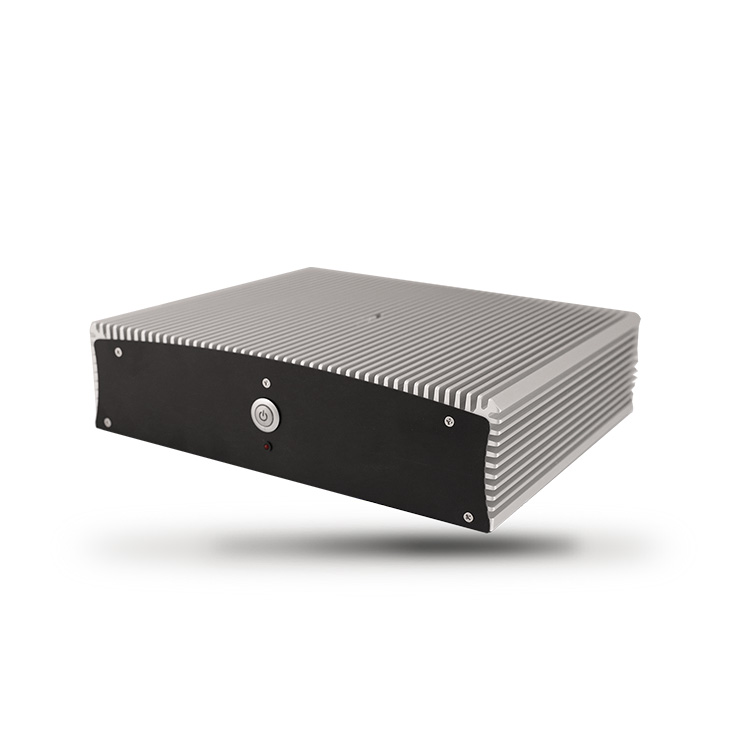

• Intel® CoreTM i7 Processor/Xeon® E3
  • Intel® CM238 chipset
  • Multiple display output support
  • Fanless design
  • Waterproof (IPX1)
  • Compatible with remote installation/upgrade/recovery
  • Second layer compartment provides flexible options for I/O Card Extension



Intel® Xeon E3-1505M v5 2.8GHz / Core i7-6820EQ 2.8GHz, 25W~45W TDP

System Memory

Supports Dual Channel DDR4 2133 SODIMM up to 32GB


Intel® CM238

OS Support

Windows® 7, Windows® 8.1,Windows®10, Linux® (optional)

Storage Disk Drive

2.5” SATA

Extension area

M.2 E Key for WiFi x1 , PCIe[x16] x1, PCIe[x4] x1, PCIe[x1] x1



Management tool

Intel® AMT


USB 3.0 x 4


1.5KV Isolated Gigabit LAN x 2

Video Out

HDMI x 1


Mic-in, Line-out

Serial Port


Power Requirement

DC 12V power input

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Net Weight

2.5 kg in the single layer, 3.7 kg in two layers

Gross Weight

3.3 kg in the single layer, 4.0 kg in two layer.


260 x 220 x 65 mm for single layer, 260x 220 x 78.5 mm for two layers

Package Dimension (W x D x H)

300 x 280 x 95 mm

Download Resource

User Manual Driver Bios Certification

Product Video

Coming soon…

Addtional Information


  • Telemedicine
  • Nursing Station
  • Patient Ward
  • Long Term Care Facility
