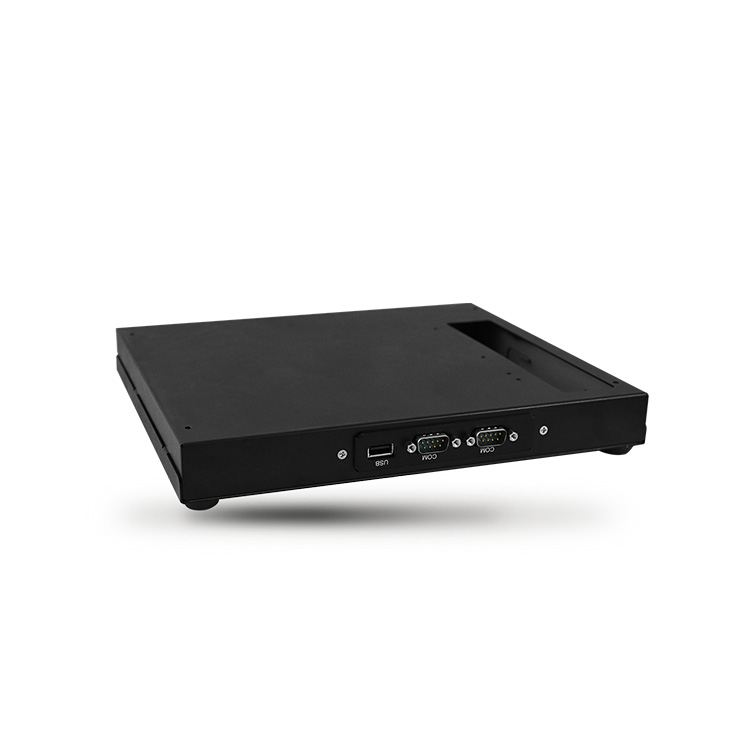

MEDPC-9300 Medical Grade Computer

  • 7/6th Generation Intel® CoreTM i7/i5/i3 Processor
  • Intel® H110 chipset
  • Multiple display output support
  • Fanless design
  • Waterproof (IPX1)
  • Medical Grade Computer
  • Compatible with remote installation/upgrade/recovery
  • Second layer compartment provides flexible options for I/O Card Extension

Specification

Processor

Intel® 7th/6th Generation Core™ i7/Core™i5/Core™ i3

System Memory

Supports Dual Channel DDR4 SODIMM up to 32 GB

Chipset

Intel® H110

OS Support

Windows® 7, Windows® 8,Windows®10, Linux® (optional)

Storage Disk Drive

2.5” SATA SSD x 1 ,mSATA(3Gb/s)

Extension area

Full/Half-size Mini-Card x1, PCI-Express [x1] x 1,Half-size Mini-Card x1,

TPM

2.0

USB

USB 3.0 x 4

Ethernet

Gigabit LAN x 2

Video Out

Display Port x 1, HDMI x 1

Audio

Mic-in, Line-out

Power Requirement

DC 12V power input

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Net Weight

2.5 kg in the single layer, 3.7 kg in two layers

Gross Weight

3.3 kg in the single layer, 4.0 kg in two layer.

Dimensions

260 x 220 x 65 mm for single layer, 260x 220 x 78.5 mm for two layers

Package Dimension (W x D x H)

300 x 280 x 95 mm

Download Resource

MEDPC-9300
User Manual Driver Bios Certification

Product Video

Coming soon…

Addtional Information

Application

  • Telemedicine
  • EHR/EMR
  • Nursing Station
  • Patient Ward
  • Long Term Care Facility

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS on Medical Grade Products.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
