  • Intel® Celeron® J1900/ N2807 Processor SoC
  • DDR3L 1333 SODIMM slot x1, Max. up to 8GB
  • Intel® LAN i211AT x4 Gigabit Ethernet, RJ-45 x 4
  • HDMI x 2: HDMI 1 (w/ Audio), HDMI 2 (w/o Audio)
  • USB 2.0 x 2, USB 3.2 Gen 1 x 1, COM x 1
  • Mini-Card x 1 (Full-Size)
  • SATA 2.0 x 1
  • DC 12V ATX Mode
  • 12 ~ 24V DC Input, ATX Mode

Specification

Processor

Intel® Celeron® J1900/ N2807 Processor SoC

Form Factor

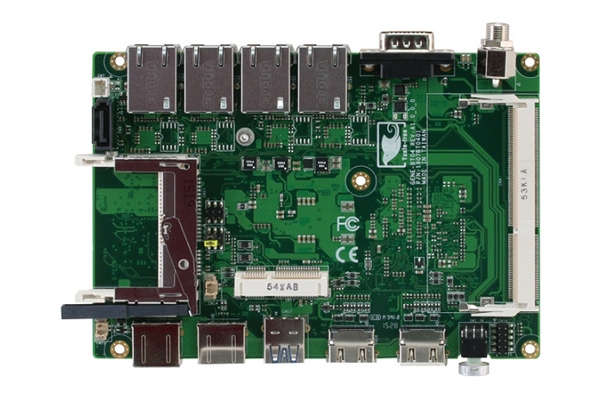

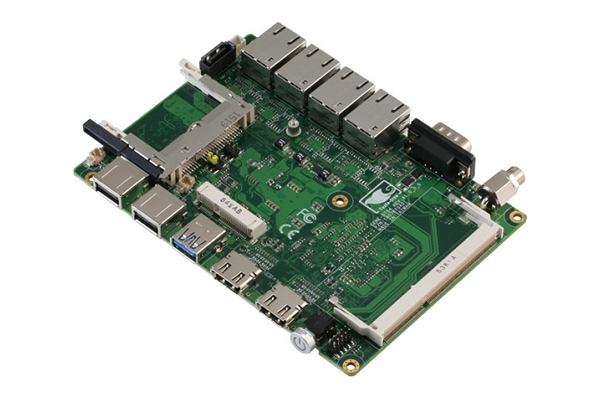

GENE 3.5” SubCompact Board

System Memory

DDR3L 1333, SODIMM x 1 upto 8GB

Chipset

Intel® Celeron® J1900/ N2807 Processor SoC

Expansion Interface

Mini-Card x 1 (for USB only)

Wake On LAN

Yes

Certification

CE / FCC

USB

USB 2.0 x 2, USB 3.2 Gen 1 x 1

Serial Port

RS-232 x 1

Ethernet

Intel® I211AT(or 210), 10/100/1000Base-TX, RJ-45 x 4

SSD

CFast™ x 1

Audio

High Definition Audio Interface

DIO

4-bit

BIOS

UEFI

VGA / LCD Controller

Intel® Celeron® J1900/ N2807 Processor SoC

Video Output

HDMI x 2: HDMI 1(w/Audio), HDMI 2(w/o Audio)

Power Consumption

Intel® N2807, DDR3L 1600MHz 4G, 0.65A@ +12V

Power Requirement

+12V ~ +24V

Operating Temperature

32°F ~ 140°F( 0°C ~ 60°C)

Storage Temperature

-40ºF ~ 176ºF (-40ºC ~ 80ºC)

MFTB

155,000

Dimensions (L x W)

5.75” x 4” (146 mm x 101.6 mm)
