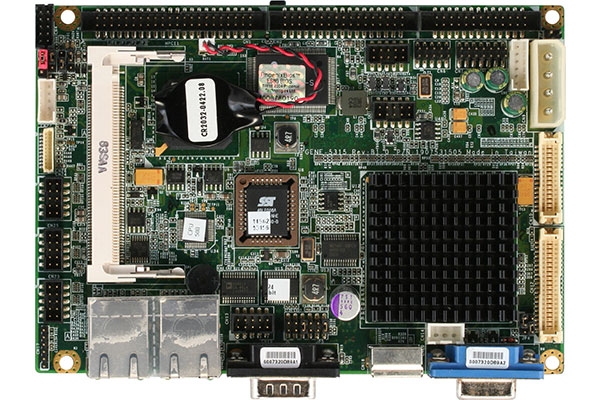

  • Onboard AMD Geode™ LX800 Processor
  • AMD Geode™ LX + CS5536
  • DDR 333 MHz SODIMM, Up to 1 GB or
    DDR 400 MHz SODIMM, Up to 512 MB
  • 10/100Base-TX Ethernet x 2, RJ-45 x 2
  • Up to 24-bit Single Channel LVDS/ TTL LCD & CRT
  • AC97 Codec 2CH Audio
  • EIDE x 1, Floppy Disk Drive x 1, CompactFlash™ x 1
  • COM x 2, Parallel x 1, USB2.0 x 4, 8-bit Digital I/O
  • Mini-PCI And PC/104 Expansions
  • +5V Only Operation

Specification

Processor

Onboard AMD Geode™ LX 800 500 Mhz

Form Factor

GENE 3.5” SubCompact Board

System Memory

DDR333 SODIMM x 1 (DDR400 optional)

Chipset

AMD Geode™ LX

H/W Status Monitoring

Monitoring system temperature, voltage status

Expansion Interface

Mini-PC, PC/104

Wake On LAN

Yes

Certification

CE / FCC

USB

USB 2.0×4

Serial Port

RS-232 x 1, RS-232/422/485 x 1

Ethernet

10/100Base-TX x 2, Realtek RTL 8139DL

SSD

Compact Flash

Audio

High Definition Audio Interface

Digital I/O

8-bit

BIOS

Award 1MB

Display Chipset

AMD Geode™ LX

VGA / LCD Controller

AMD Geode™

Video Output

CRT, TTL, LCD, LVDS

Power Consumption

LX 800 500 MHz, DDR400 1 GB,
1.17A@+5V

Power Requirement

+5V

Operating Temperature

32°F ~ 140°F( 0°C ~ 60°C)

Storage Temperature

-40ºF ~ 176ºF (-40ºC ~ 80ºC)

MFTB

90,000

Dimensions(L x W)

5.75” x 4” (146 mm x 101.6 mm)
