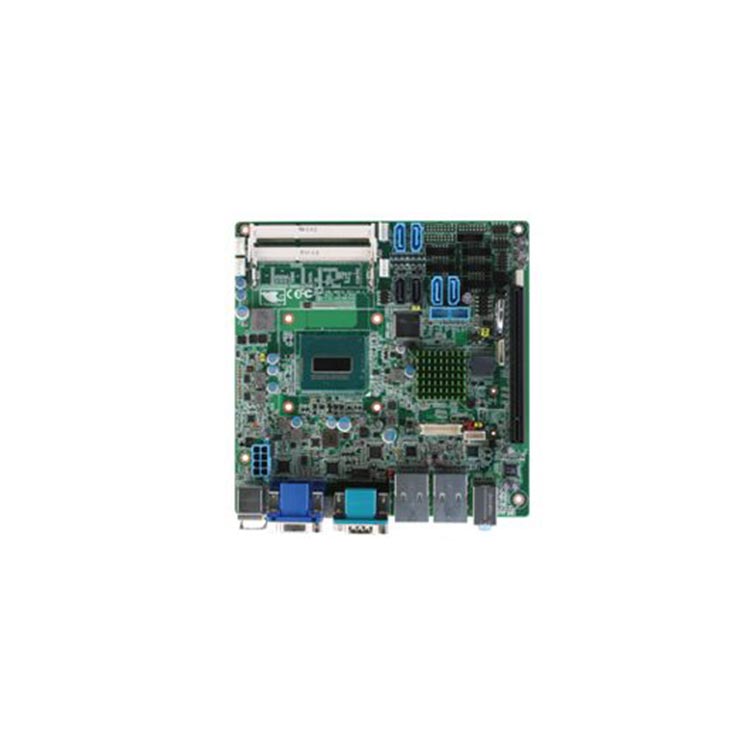

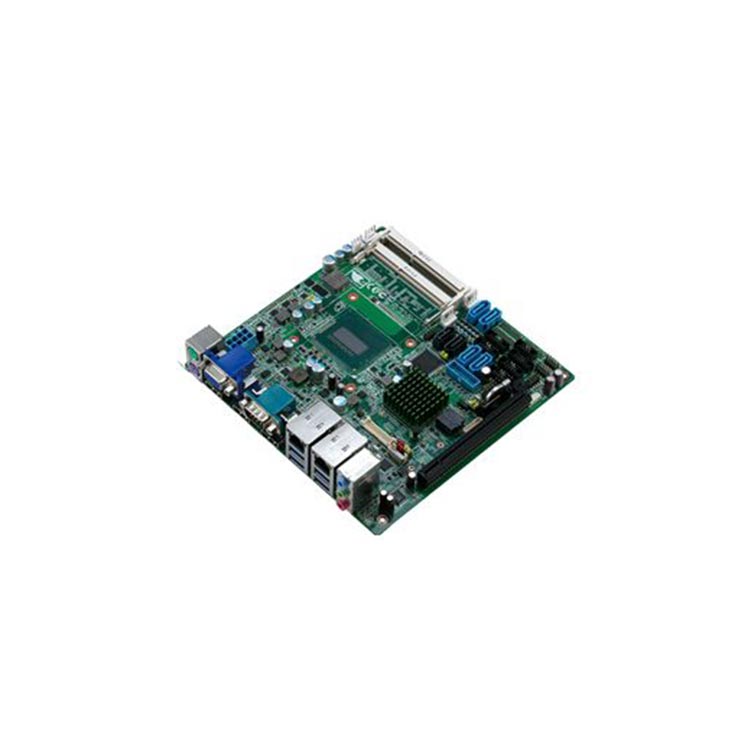

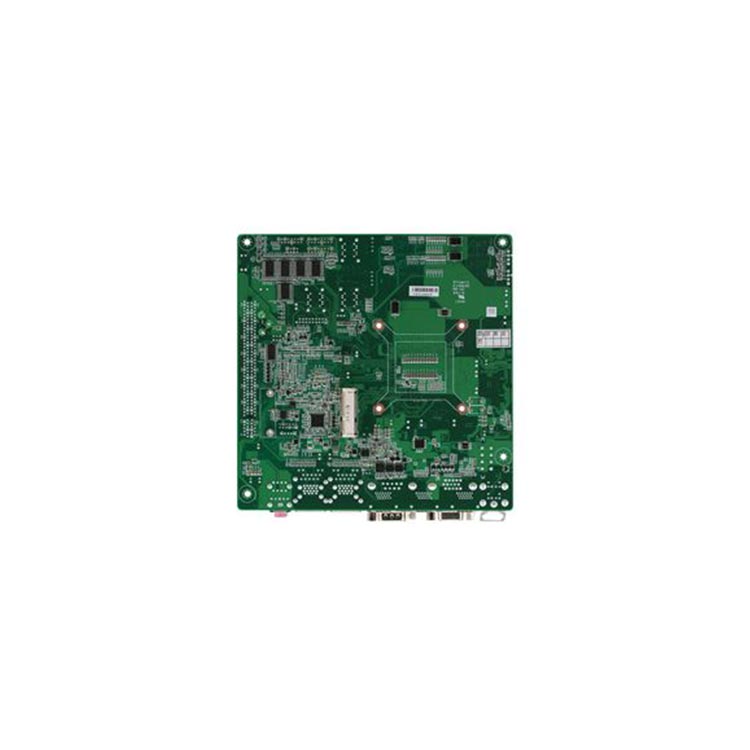

Embedded Motherboard with Onboard Intel® 4th Generation BGA 1364 Processor

  • Onboard Intel® 4th Generation BGA 1364 Processor
  • 204-pin DDR3L 1600/1333 MHz SDRAM x 2, Up to 16 GB

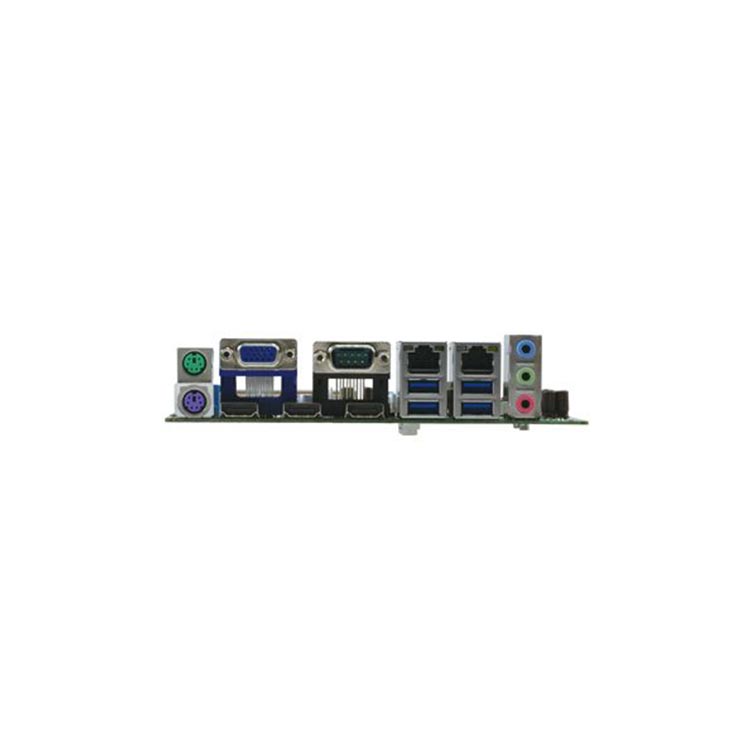

  • HDMI x 3, VGA, 24-bit Dual-Channel LVDS
  • Audio Jack x 3 with BTX Type (Mic-in, Line-in, Line-out)
  • LAN 1 : Intel® I217-LM Gigabit Ethernet
  • LAN 2 : Realtek RTL 8111E Gigabit Ethernet
  • SATA 6.0 Gb/s x 4, SATA 3.0 Gb/s x 2, Support RAID 0,1,5,10
  • PCI-E[x16] x 1, Mini-PCIe x 1, COM x 5
FacebookTwitterGoogle PlusPinterest

Specification

Processor

Onboard Intel® 4th Generation BGA 1364 Processor

Form Factor

Mini-ITX

System Memory

204-pin Dual-Channel DDR3L SDRAM x 2, Up to 16 GB

Chipset

Intel® QM87

H/W Status Monitoring

Supports System temperature, Voltage, and Cooling fan monitoring

Expansion Interface

PCI-E[x16] x 1, Mini-PCIe x 1

BIOS

AMI BIOS – 128 MB ROM

Wake on LAN

Yes

Watchdog Timer

System Reset: 1~255 steps programmable

USB

USB 3.0 x 6, USB 2.0 x 4

Serial Port

RS-232 x 4, RS-232/422/485 x 1

Ethernet

LAN 1: Intel® I217-LM Gigabit Ethernet
LAN 2: Realtek RTL 8111E Gigabit Ethernet

Storage

SATA 6.0 Gb/s x 4, SATA 3.0 Gb/s x 2, Support RAID 0,1,5,10

Audio

Line-in, Mic-in, Line-out

Digital I/O

8-bit programmable(4-in/4-out)

Power Consumption

Intel® Core™ i7-4700EQ 3.40 GHz, 4.23A@ +12V/Full loading 50.5W

Power Requirement

+12V 8-pin connector x 1

Power Compliance

Compliant with EuP / ErP

Power State

CPU Fan / Chassis Fan

Operating Humidity

0% ~ 90% R/H, non-condensing

Operating Temperature

32 °F ~ 140 °F (0 °C ~ 60 °C)

Storage Temperature

-40 °F ~ 176 °F (-40 °C ~ 80 °C)

Gross weight

1.32 lb (0.6 kg)

Dimensions(W x D x H)

6.7" x 6.7" (170 mm x 170 mm)

Smart Fan Control

CPU Fan / Chassis Fan
