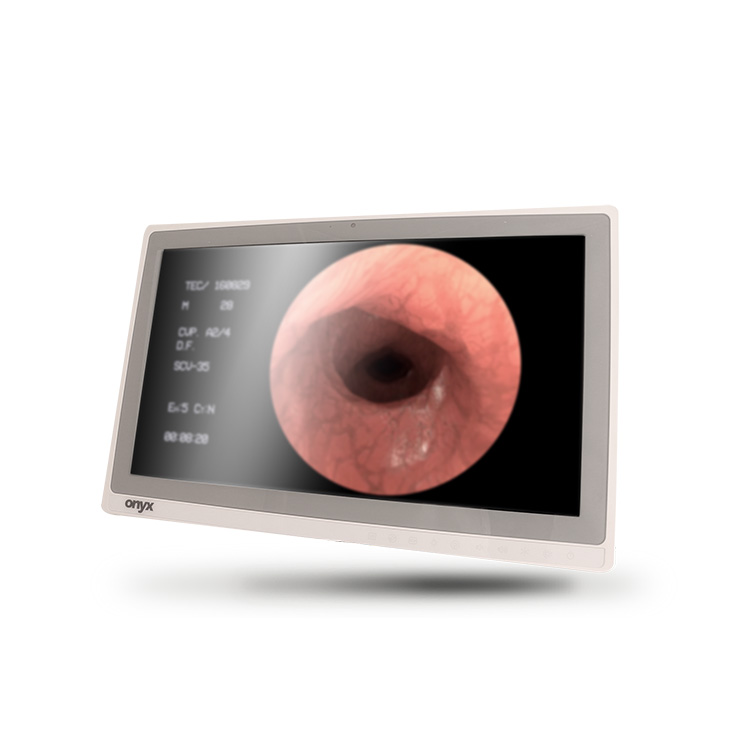

22” Fanless Medical AIO

  • 6th Generation Intel® CoreTM i7/i5/i3 Processor
  • Intel® H110 chipset
  • 22″ Full HD multi-touchscreen (resistive/capacitive)
  • High contrast MVA LCD (3000:1)
  • Support 4K UHD HDMI video out
  • Medical grade certified (safety and EMC/EMI)
FacebookTwitterGoogle PlusPinterest

Specification

Processor

Intel® 6th Generation Core i7 / i5 / i3 Processor

System Memory

Supports Dual Channel DDR4 2133 SODIMM up to 32GB

Chipset

Intel® H110

OS Support

Windows® 7, Window® 8.1, Window® 10, Linux®

Storage

2.5" SATA Hard Disk Drive/SSD x 1, Slim DVD-RW Drive x 1 (optional)

Security

Trusted Platform Module, RFID Reader (optional), Smart Card Reader x 1 (optional)

Wireless Communication

802.11ac/a/b/g/n(optional), Bluetooth 3.0HS & 4.0 (optional)

Speaker

5Wx2

Function Keys

Speaker Volume Up/Down, LCD Brightness Up/Down LCD On/Off, Touch Screen On/Off, Reading Light On/Off

Power Requirement

DC 12V

Size

22" MVA LCD

Resolution

1920 x 1080

Luminance

250 nits

View Angle

178˚(H)/178˚(V)

Contrast Ratio

3000:1

Back Light Life Time

30,000 Hours

Touchscreen

5-Wire Resistive / Capacitive Multi-Touch

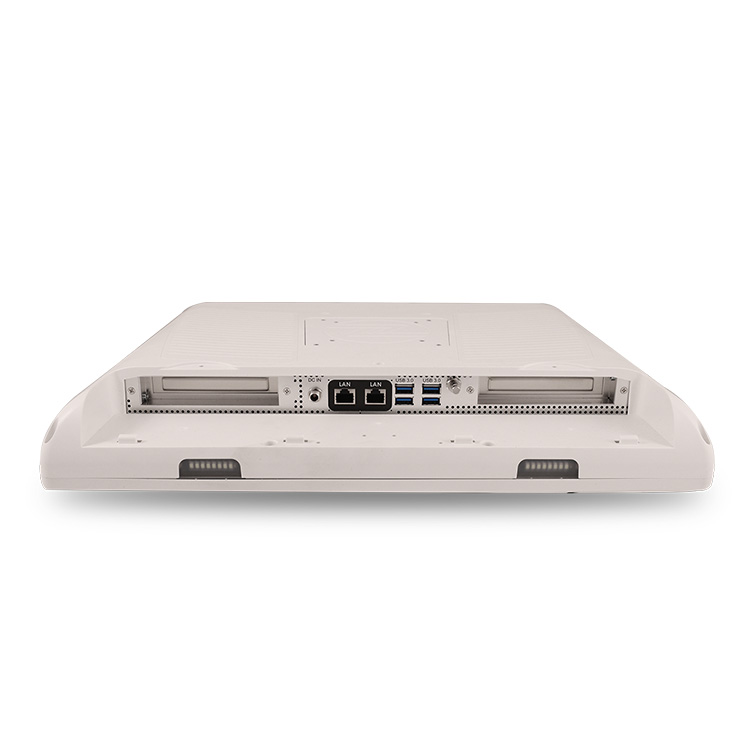

USB

USB 3.0 x 4, USB 2.0 x 2

Serial Port

RS-232 x 2

Ethernet

1.5KV Isolated Gigabit LAN x 2

Video Out

Display Port x1, HDMI x 1 (Supports resolution up to 3840 x 2160)

Audio

Mic-in, Line-out

Operating Temperature

0°C ~40°C( 32°F ~104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Mounting

VESA 75/100 mm

Degree of protection

IP65 in the front ; IP54 in the back

Net Weight

8.5kg (18.7lb)

Package Dimension (W x D x H)

750 x 220 x 490mm, 790 x 220 x 550mm

Certifications

CE: EN 60601-1-2:2015(V4.0), cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1), EN 60601-1:2006/A1:2013(V3.1), FCC: Part 18 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1)

Download Resource

MATE-2203
User Manual Driver Bios Certification
Download Download Download Download

Product Video

Coming soon…

Addtional Information

Application

  • Telemedicine
  • EHR/EMR
  • Nursing Station
  • Patient Ward
  • Long Term Care Facility

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
