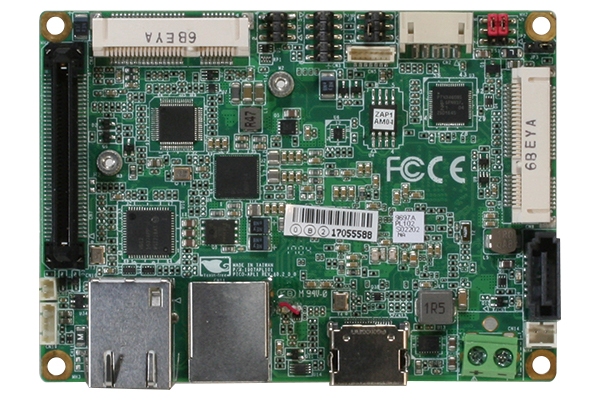

  • Intel® Atom™ E3900/ Pentium® N4200/ Celeron® N3350 Processor SoC
  • DDR3L 1867 MHz SODIMM x 1, up to 8 GB
  • 18/24-bit Dual Channel LVDS LCD (Optional)
  • Supports Triple Display (Optional)
  • SATA 6.0Gb/s x 1, mSATA (Full Size) x 1
  • Gigabit Ethernet x 1, RJ-45 x 1
  • RS-232 x 1, RS-232/422/485 x 1 (Optional by Cable
  • Mini-Card x 1 (Half-Size)
  • 4-bit Digital I/O
  • BIO Connector for Daughter Board (Optional)

Specification

Processor

Onboard Intel® Atom™ E3845/ Celeron® J1900/N2807 Processor

Form Factor

Pico-ITX

System Memory

204-pin DDR3L SODIMM x 1,DDR3L 1867MHz, Max. 8GB

Chipset

Intel® Atom™ E3900/ Pentium® N4200/ Celeron® N3350
Processor SoC

H/W Status Monitoring

Monitoring system temperature, voltage status

Expansion Interface

Mini Card (Half-size) x 1, BIO (optional) x 1, I2C or SMBus
x 1

BIOS

AMI/SPI

Wake On LAN

Yes

USB

USB 3.2 Gen 1 x 2, Rear IO, USB 2.0 x 1

Serial Port

COM1: RS-232 x 1,
COM2: RS-232/422/485 x 1 (Ring/ +5V/ +12V)

Ethernet

Intel® Gb Ethernet i210AT, 10/100/1000Base-TX, RJ-45 x 1

Storage

SATA 6.0Gb/s x 1, mSATA or Mini-PCIe by BOM (Full size)
x 1

Audio

Line-out x 1

Digital I/O

Support 4-bit(Programmable, 2-in/2-out)

Display Chipset

Intel® Atom™ E3900/ Pentium® N4200/ Celeron® N3350
Processor SoC

Resolution

LVDS (18/24bit 2CH) 1920 x 1200 (optional)
HDMI 1.4b up to 3840 x 2160 DDI (BIO)

LCD Interface

18/24-bit Single LVDS

Power Consumption

Intel® N3350 Processor, DDR3L 8GB 0.91A@+12V

Power Requirement

+12V AT/ATX(default)

Operating Temperature

32°F ~ 140°F( 0°C ~ 60°C)

Storage Temperature

-40ºF ~ 176ºF (-40ºC ~ 80ºC)

Dimensions(L x W)

3.94" x 2.84" (100mm x 72mm)
