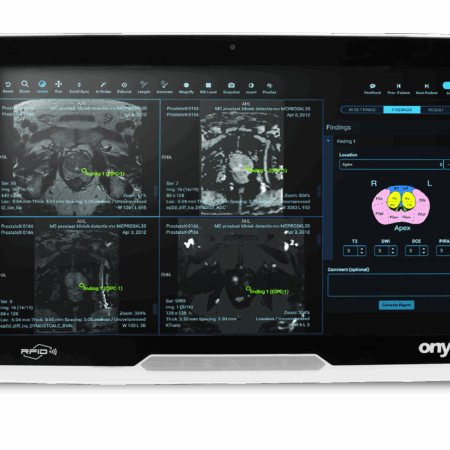

10.1″ Rugged Clinical Assistant Tablet

  • Android OS or Windows 10
  • HD touch screen display and Alarm light
  • 2D barcode reader/NFC reader
  • Waterproof (IP65)
FacebookTwitterGoogle PlusPinterest

Additional information

Processor

Intel® Cherry Trail QC Processor Z8350 1.44 GHz

System Memory

2 / 4 GB

OS Support

Android 6.0, Microsoft® Windows 10 IOT LTSB

Storage

eMMC 64 /128 GB

Wireless Communication

802.11 a/b/g/n+BT 4.0

Gyroscope Sensor

Bosch BMG 160

Camera

2 MP (Front) / 8 MP (Rear)

Touchscreen

Projected Capacitive Touchscreen,w/Gorilla Glass

Accelerometer Sensor

Bosch BMC150

Ambient Light Sensor

Capella CM3218

Power Button

x1

Volume Keys

x2

Speaker

3Wx2

Internal Mic

x1

Alarm Light

x1 (Optional)

Power Requirement

DC 15 V

Display Size

10.1” 16:10 Wide Screen LED Panel

Resolution

FHD 1920 x 1200

Max. Colors

16.7M

Contrast Ratio

800:1

Luminance (cd/m2)

300 nits

USB

USB 3.0 (Type-A) x1

Audio Out / Mic In

3.5 mm Combo Audio Jack x1

DC-In

X1

Battery Type

Lithium-Ion

Battery Capacity

4090mAh (46.62 Wh)

Battery Run Time

Approx. 8 hrs

VESA

VESA 75 via cradle

Operating Temperature

-10°C ~ 55°C (14°F ~ 131°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Humidity

10%~95%@35°C, non-condensing

Dimensions

260 (W) x 186 (H) x 23 (D) mm

Net Weight

Approx. 1 kg

Certifications

CE: EN 60601-1-2:2015(V4.0), cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1), EN 300 328 (V2.1.1), EN 301 893 (V2.1.1), EN 60601-1:2006/A1:2013(V3.1), FCC: Part 18 Class B, Part 15 C/E, UL: ANSI/AAMI ES60601-1:2012 (V3.1)

Product Video

Coming soon…

Description

Application

  • Ward
  • Emergency Room
  • Nurse / Doctor use Table

Standard Warranty

ONYX provides FREE 2 years standard manufacturer’s warranty with the purchase options of extended warranties for up to 5 YEARS.

Professional Technical Support

Onyx Healthcare USA’s Technical Support team is happy to assists you with any technical issues. We offer live chat, phone, and/or online support services FREE of charge.

FREE Custom OS Image Installation

Onyx Healthcare USA offers FREE installation of customer’s custom OS Image for production orders to ensure customer’s product deployment is hassle FREE and ready to deploy out of the box.
