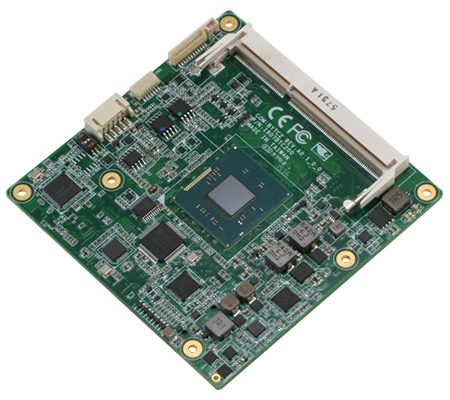

- Intel® Atom™ SoC series Processor
- DDR3L 1066/1333 MHz SODIMM x 1, Up to 8GB
- Intel Gigabit Ethernet
- CRT, Up to 24-bit Dual-channel LVDS, DP/HDMI, eDP (Optional)
- High De nition Autio Interface
- SATA 3.0Gb/s x 2
- USB3.0 x 1, USB2.0 x 7
- PCI-Express [x1] x 3
- COM Express Compact Module, Pin-out Type 6, COM.0 Rev. 2.1
-

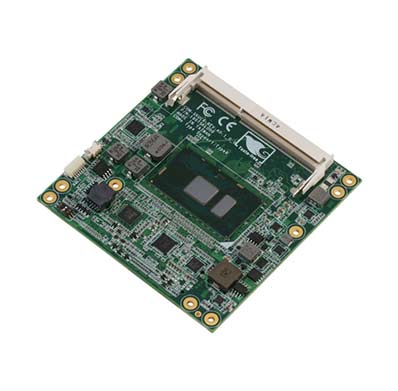

- 8th Generation Intel® Core™/Celeron™ ULT Processor
- DDR4 socket x 2, non-ECC Support
- Gigabit Ethernet x 1
- VGA, 18/24b 2ch LVDS LCDs or eDP, DDIx2 (DDI2 share with VGA
- High Definition Audio Interface
- SATA3 x 2, eMMC onboard (up to 64GB)
- USB 3.2 Gen 2 x 4, USB2.0 x 8
- PCI-Express [x1] x 8 lanes available, 5 Devices max
- GPIO x8, SMbus, I2C, LPC
- COM Express Type 6, Compact size, 95mm x 95mm
-
- Supports ETX Module
- Supports 10/100Base-TX Ethernet, RJ-45 x 1
- VGA, LVDS, Connector
- 5.1 Channel Audio (Optional)
- PATA Connector x 1, SATA Port x 2
- USB Port x 3, COM Port x 4
- PCI-Express [x1] Slot x 2, PCI Slot x 1
- Express Card Slot x 1, Mini-PCI Slot x 1, Mini-Card Slot x 1, LPC Connector x 1
- MicroATX Form Factor
- AT / ATX Power Input
